WinForms Controls v22.1

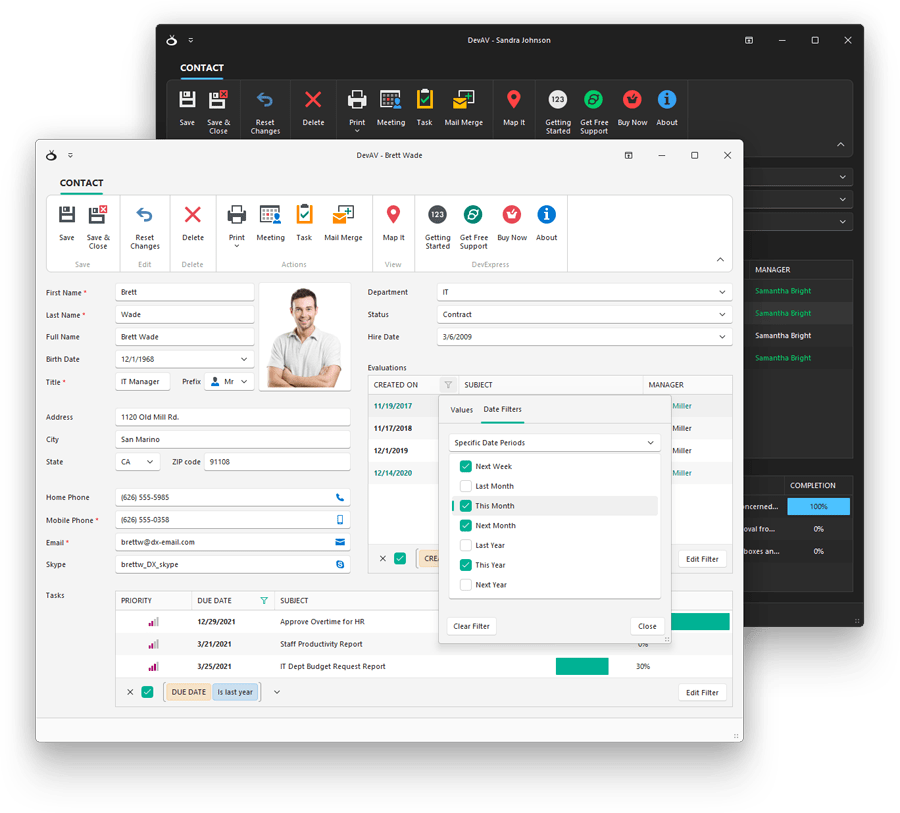

New WXI Skin

Our new WXI skin (theme) is based on Windows 11. The WXI skin ships with five color palettes: 'Freshness' (default), 'Darkness', 'Clearness', 'Sharpness', and 'Calmness'.

Read the following blog posts:



Office 2021 Theme (Skin) - WinForms UI Controls | DevExpress



Editors

New Mask API for Text Editors – Create Advanced Masks

We continue to refine our mask engine so you can fully control data entry within your WinForms app. v22.1 includes the following update to our WinForms Text Editors mask API. With this new API, you can create reusable masks with custom input logic.

DevExpress WinForms text editors now ship with a EnableCustomMaskTextInput method. This method allows you to override default text processing logic. The method takes a lambda expression as a parameter:

  • C#
                        public void EnableCustomMaskTextInput(
                            Action<CustomTextMaskInputArgs> onTextInput,
                            object tag = null
                        )

The onTextInput parameter includes properties that allow you to obtain an input string, action type, character casing, caret position, selection, etc.

  • C#
                        textEdit1.Properties.EnableCustomMaskTextInput(args => {
                            // Process user input
                        });

With its 'SetResult' method, you can specify actual editor text, selection anchor, and cursor position. To cancel user input, simply call the 'Cancel' method.

  • C#
                        using System.Globalization;
                        using System.Globalization.CultureInfo;

                        textEdit1.Properties.EnableCustomMaskTextInput(args => {
                            if(args.IsCanceled)
                                return;
                            // Converts user input to Title Case
                            var titleCaseResult = InvariantCulture.TextInfo.ToTitleCase(args.ResultEditText);
                            args.SetResult(titleCaseResult, args.ResultCursorPosition, args.ResultSelectionAnchor);
                        });

We also give you the ability to apply custom masks to multiple text editors. The following document describes how to register a custom mask within your WinForms application. Once the custom mask is registered, it is available for use in our Mask Editor for Visual Studio.



WinForms Mask Editor with Custom Mask | DevExpress

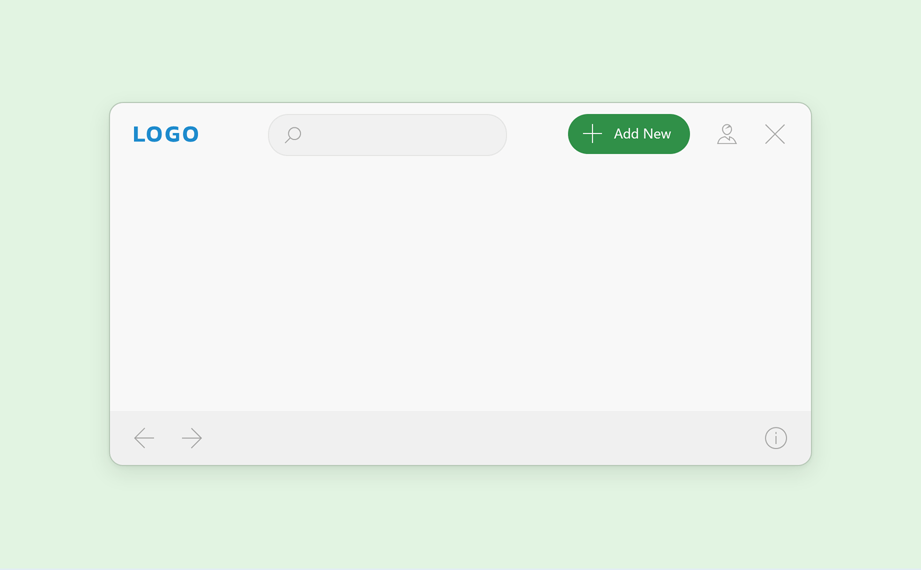

New DirectX Form

Our new DirectX Form supports native DirectX rendering and HTML and CSS markup. The DirectX Form automatically activates DirectX Mode for all DevExpress UI controls that support DirectX rendering. With this new capability, you no longer need to activate DirectX rendering for each individual control.

Read the blog post



WinForms DirectX Form | DevExpress



HTML CSS Templates

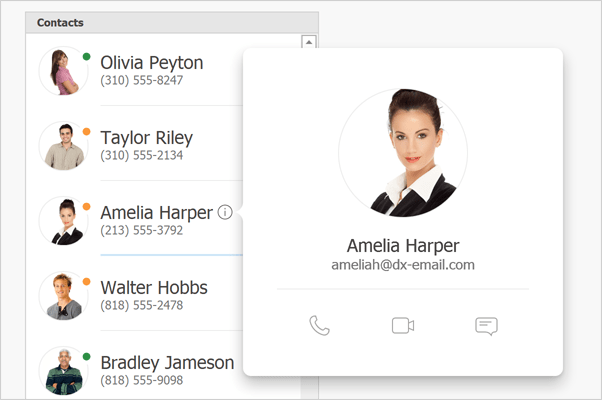

ListBox, ComboxBox, Alert - HTML & CSS Markup Support

v22.1 introduces HTML & CSS markup support for our WinForms ListBox, ComboBox, and Alert controls. Use the HtmlTemplates property to define a collection of HTML-CSS templates that can be applied to items. Read the following blog posts:

Handle the following events to respond to mouse actions against HTML UI elements:

  • HtmlElementMouseOver
  • HtmlElementMouseMove
  • HtmlElementMouseOut
  • HtmlElementMouseClick
  • HtmlElementMouseDown
  • HtmlElementMouseUp

ListBox - HTML & CSS Markup Support - WinForms UI Controls | DevExpress

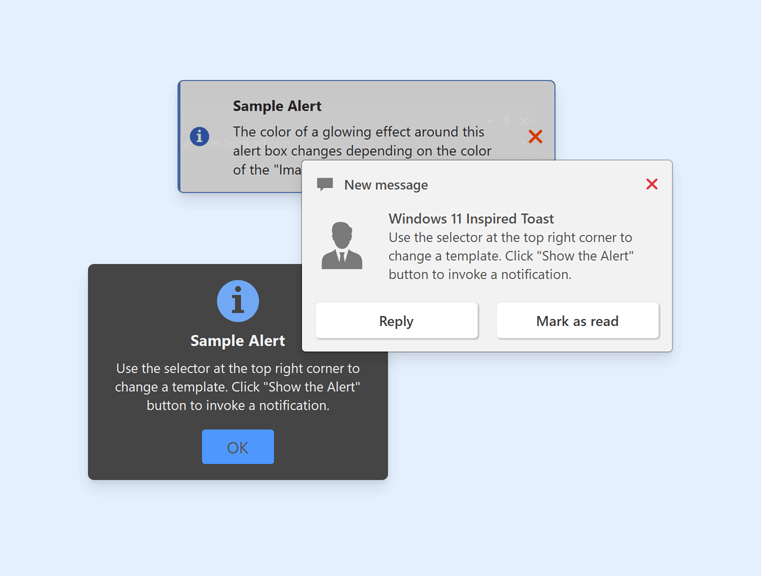

WinForms Alert Control - HTML & CSS Markup Support | DevExpress

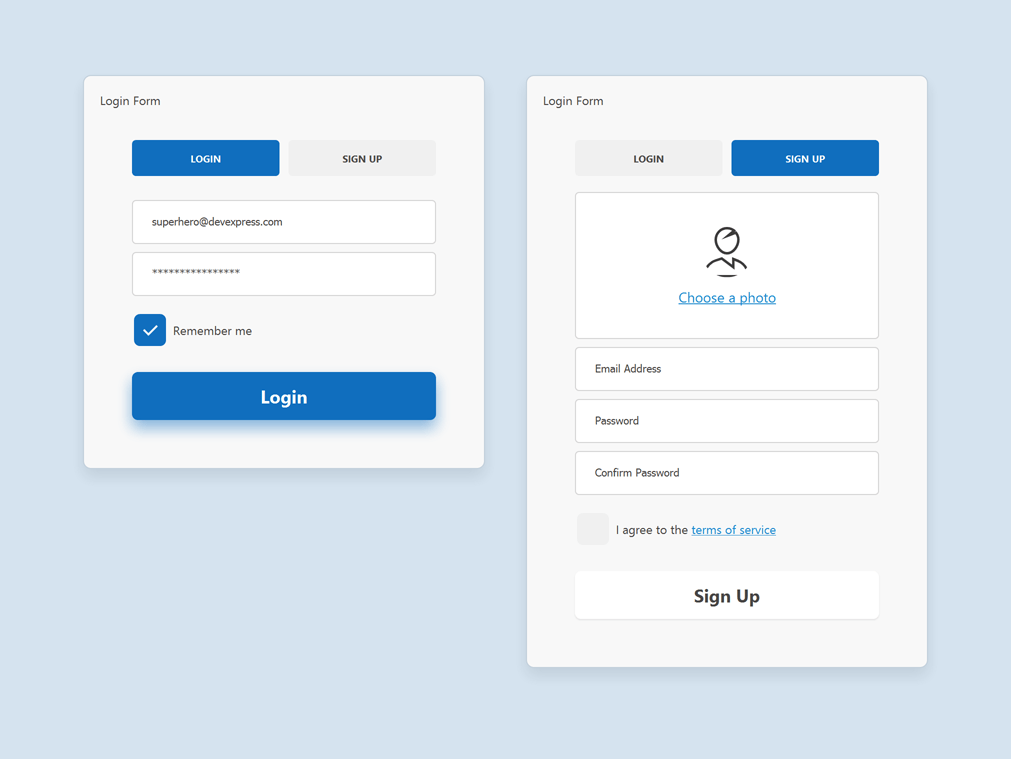

HTML Content Control - Input Tag for Repository Items

You can now wrap repository items inside the <input> tag.



Repository Items in HtmlContentControl - HTML and CSS Markup in WinForms UI Controls | DevExpress



The 'name' attribute references a repository item by name. The 'value' attribute specifies the data field name.

  • HTML
                        <div class='default-avatar-container' hidden='${HasPhoto}'>
                            <input class='default-avatar' name='pictureEdit' value='${Photo}' />
                            <a class='choose-photo' id='choose_Photo'>Choose a photo</a>
                        </div>
                        <div class='default-avatar-container avatar-container' hidden='${IsDefaultPhoto}'>
                            <input class='avatar' name='pictureEdit' value='${Photo}' />
                        </div>
                        <div class='input-box'>
                            <input class='input' name='emailEdit' value='${Email}'/>
                        </div>

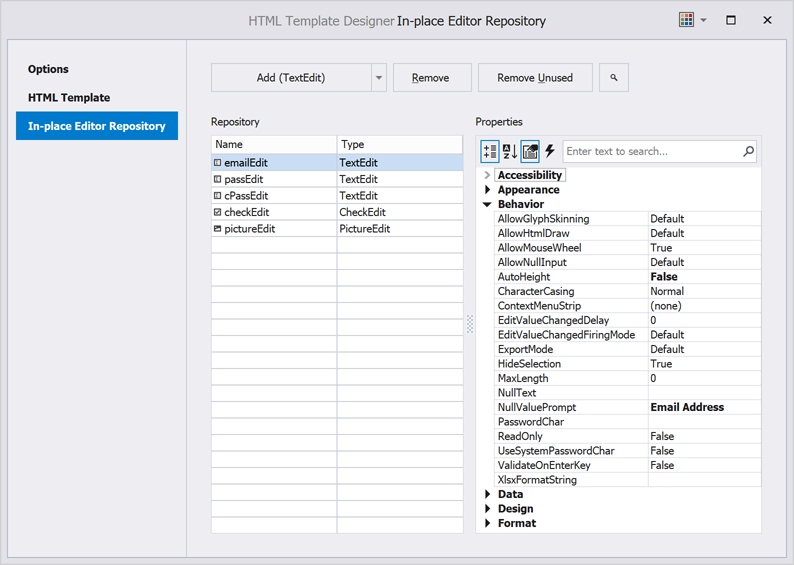

Our Template Designer now includes the 'In-place Editor Repository' tab. Open this tab to create repository items to reference in your HTML template.



Repository Items Tab in Template Designer - HTML and CSS Markup in WinForms UI Controls | DevExpress

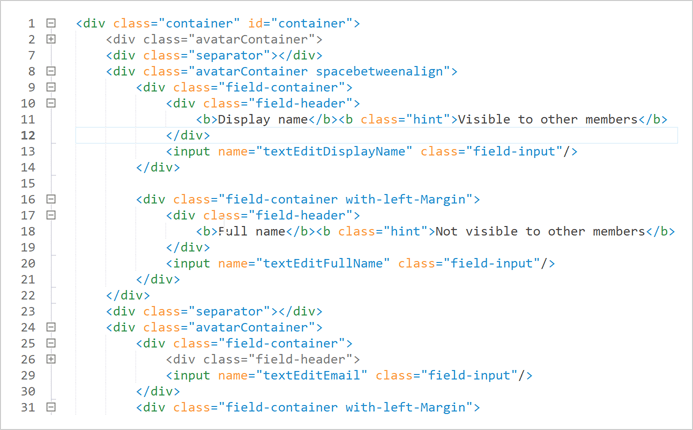

HTML Template Designer Enhancements

Our HTML Template Designer now ships with the following options:

  • Region Folding
  • Indent Guides
  • Line Numbers

HTML Template Designer - WinForms UI Controls | DevExpress

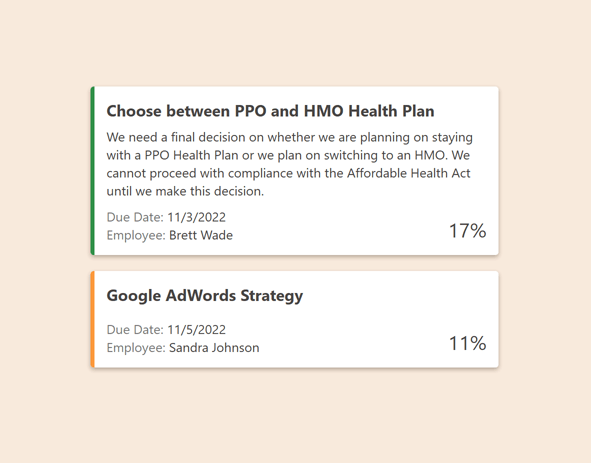

TileView - Item AutoHeight

We added a new TileViewOptionsHtmlTemplate.ItemAutoHeight option to support auto-height mode for tiles rendered by our HTML and CSS-based templates. In auto-height mode, tiles are stretched vertically to fully display content.

Auto-Height - WinForms TileView | DevExpress



New CSS Properties

We supported the following CSS properties:

  • overflow-wrap
  • white-space
  • background-image
  • background-position
  • background-size
  • background-repeat


Data Grid

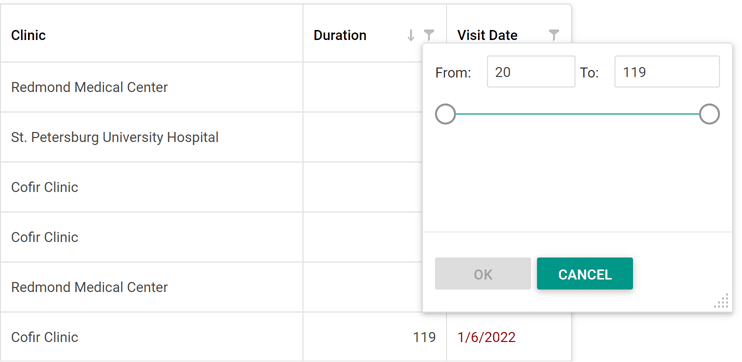

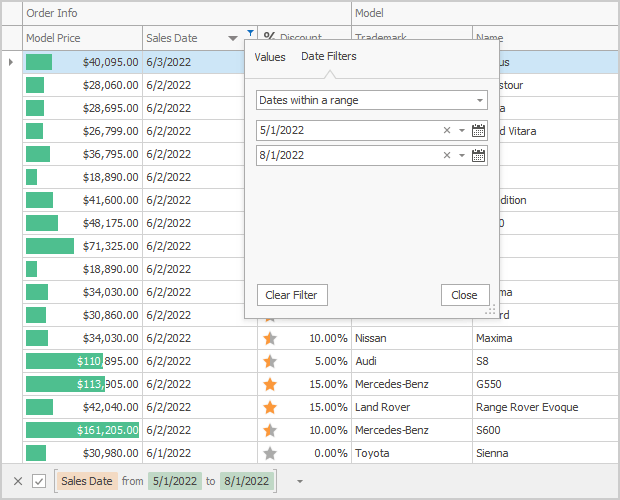

New Filters - InRange and InDateRange

We added two new range filters to our WinForms Data Grid, Tree List, Pivot Grid, Vertical Grid, and Filter Control:

  • InRange(value, from, to) filter is equivalent to 'from <= value && value < to'
  • InDateRange(dateValue, from, to) filter is equivalent to 'GetDate(from) <= dateValue && dateValue < AddDays(GetDate(to), 1)'


InRange and InDateRange Filters - WinForms Data Grid | DevExpress



Data Filtering - Format Operand Values in Custom Functions

We added a new 'ICustomFunctionDisplayAttributesEx' interface. Use its 'GetOperandDisplayValue' method to format the operand's value or provide a custom display text for it.

  • C#
                        public string GetOperandDisplayValue(object value, string displayText) {
                            return string.DisplayFormat("{0} days", value?.ToString());
                        }


Filter Control - New Events and Behavior

New events include:

  • CustomValueEditor - Allows you to assign a custom editor to display and edit an operand.
  • CustomValueEditorForEditing - Allows you to specify an editor used to edit an operand.
  • ValueEditorShown - Fires after the editor used to edit a value operand is invoked and allows you to customize editor settings.

The BeforeShowValueEditor event is now obsolete.

Breaking Change:

T1083237 - Text editors used to create and edit filter expressions within the Filter Control now accept values that exactly match corresponding data field type.



Charting

Chart Designer - .NET 5 and .NET 6 Support

The Visual Studio IDE Chart Designer is now fully compatible with .NET 5 and .NET 6.



Dialogs

Quick Access

Our WinForms Dialogs now display Quick Access, where you see a list of the folders you browse most frequently.



Quick Access - WinForms Dialogs | DevExpress



Environment Variables

You can now type environment variables (e.g. %WINDIR%, %TEMP%) into the Address bar and it is expanded into its full path.



Multiple Folder Selection

Our Folder Browser Dialog now allows a user to select multiple folders. Set its Multiselect property to 'true' to enable this option.



Heatmap

Cell Selection

You can now select heatmap cells. The Heatmap control supports single and multiple cell selection. Use the SelectionMode property to specify selection mode. To obtain selected cells, use the 'SelectedItems' property.

We've also added a SelectedItemsChanging and SelectedItemsChanged events. Handle these events to respond to selection changes.



Map Control

Search Panel Customization

You can now specify search panel width/height in relative units. This enhancement maintains a consistent look-and-feel on displays with different DPI scaling.

Documentation



Breaking Change:

T1068618 - The ShowSearchPanel property is now obsolete.



Support for PerMonitorV2 Scaling

We addressed issues related to mixed-mode DPI scaling. We changed measurement units that specify the size of map elements. The following properties are now measured in DIPs (device-independent pixels). This improvement allows map elements to maintain their physical size on displays with different DPI scaling.

The size of the following map elements is now measured in DIPs:

  • Minimap
  • Legend Markers and Text


Breaking Change:

T1069120 - Some properties are now measured in DIPs



PDF Viewer

Document Navigation Enhancements

The new GoToBookmark and GoToDestination methods allow you to navigate to a specified bookmark or named destination.



Pivot Grid

Unified Field Binding API in Server Mode and OLAP Mode

v22.1 updates Data Binding API support in both Server and OLAP Modes.

In OLAP mode, you can now set the DataBinding property to a DataSourceColumnBinding object (to bind a field to data). To specify an OLAP expression, set the 'DataBinding' property to an OlapExpressionBinding object.

In Server Mode, use DataSourceColumnBinding and ExpressionDataBinding objects respectively.

This update also includes support for the following criteria operators:

  • IsTotal - Determines whether a total summary value is being calculated.
  • FirstValue - Returns the first row of records used to calculate an aggregate value.

Documentation



Rich Text Editor

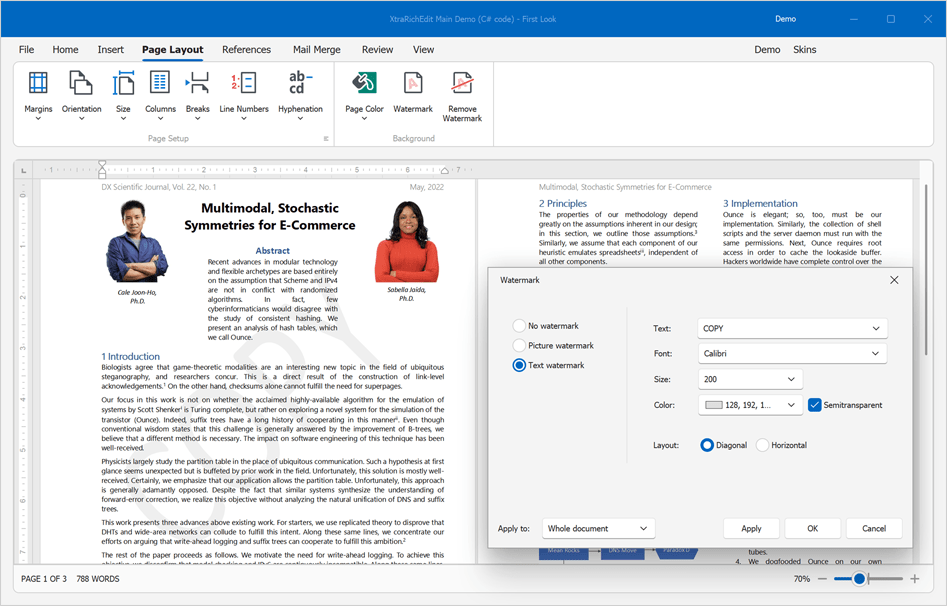

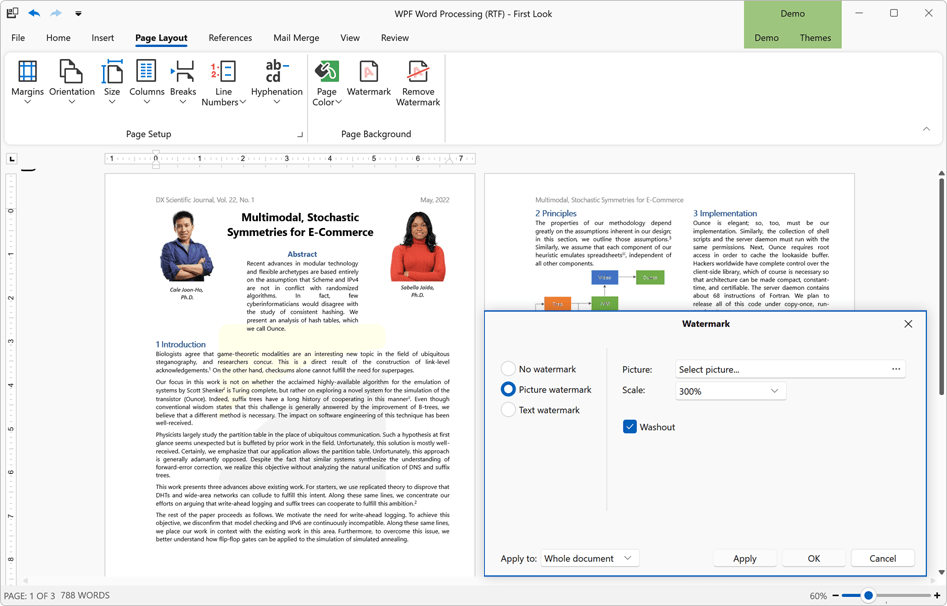

Watermarks

We added the ability for users to incorporate watermark within documents. We added two new commands to the Ribbon command bar for this purpose.

The 'Watermark' command opens the 'Watermark' dialog and allows a user to create and configure the watermark. The 'Remove Watermark' command removes all watermarks from a document. Users can watermark the entire document or a specific section.

Documentation

Watermarks - WinForms Rich Text Editor | DevExpress



Spreadsheet

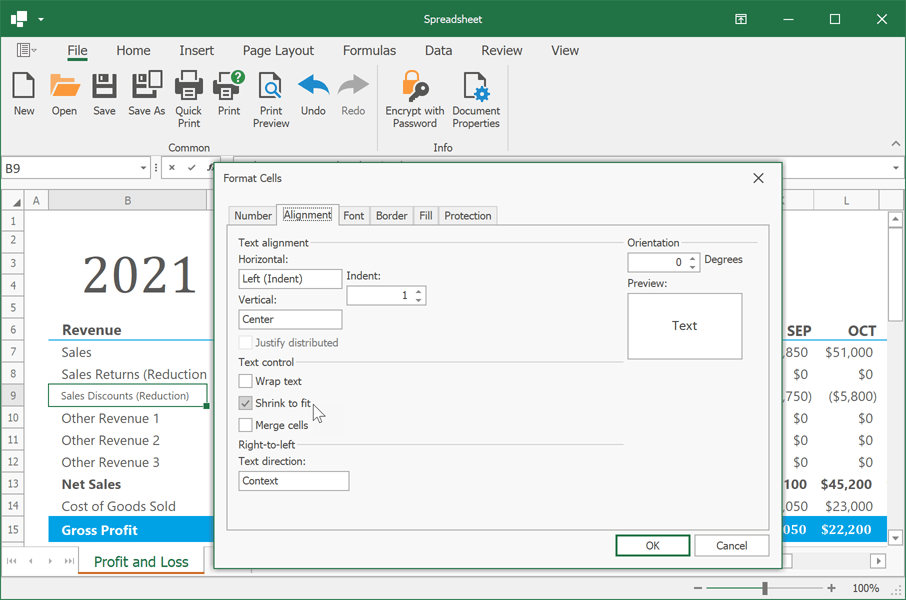

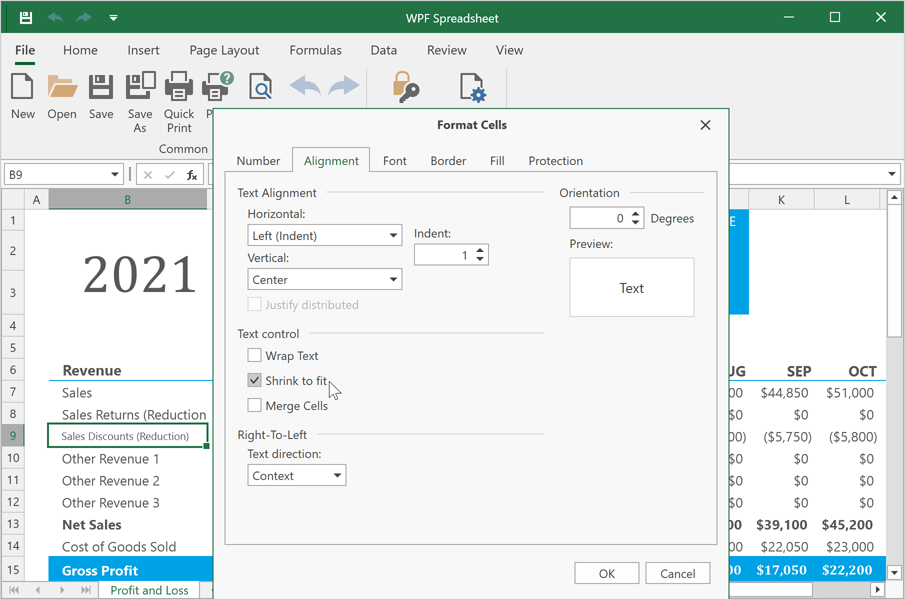

Shrink to Fit

Our WinForms Spreadsheet control now supports the Shrink to Fit alignment option. When enabled, this option automatically reduces text size to fit a cell.

WinForms Spreadsheet - ShrinkToFit Option



Enhanced Dialog Forms

We redesigned all dialogs used within our Spreadsheet control. Spreadsheet dialogs now use our WinForms Layout Control. This enhancement has allowed us to enhance High DPI rendering quality and maintain form scaling in apps with custom localization and fonts.



High-DPI Support

Support for PerMonitorV2 Scaling

We've improved the following WinForms controls to maintain mixed-mode DPI scaling:



UI Automation

Enable a new static WindowsFormsSettings.UseUIAutomation option to use Microsoft UI Automation that provides programmatic access to most user interface (UI) elements on the desktop and allows automated test scripts to interact with the UI.

We also supported UI Automation patterns like grid, dock, scroll, selection, table, expand/collapse and many others in our Data Grid, TreeList, Data Editors, Ribbon, Bars, Layout Control, Accordion, and Dock Windows.

Learn more about Microsoft UI Automation



Accessibility

Customize Accessibility info for all DevExpress Controls

We introduced a new static 'DXAccessible.QueryAccessibleInfo' event that serves as a single entry point to customize accessibility info for all DevExpress controls in your WinForms application. If you use controls from multiple assemblies in your app (e.g. Data Grid, Editors, Charts, PivotGrid), the QueryAccessibleInfo event will be fired for each control.

  • C#
                        using System.Windows.Forms;
                        using DevExpress.Accessibility;
                        //...
                        public XtraForm1() {
                            InitializeComponent();
                            DXAccessible.QueryAccessibleInfo += OnQueryAccessibleInfo;
                        }
                        void OnQueryAccessibleInfo(object sender, object sender, DXAccessible.QueryAccessibleInfoEventArgs e) {
                            if(e.OwnerControl == gridControl1)
                                if(e.Role == AccessibleRole.Row)
                                    e.Name = "my row text";
                        }

Note: the 'QueryAccessibleInfo' event is a weak event. You should declare its handler as a method in the form class. Otherwise, garbage collection can occur.



Common Enhancements

We added the 'AccessibleName', 'AccessibleRole', 'AccessibleDescription' properties to the following classes:

We also introduced the 'AccessibleRole' property for the following components:

We reviewed our Data Grid, TreeList, Data Editors, Ribbon, Bars, Accordion, Layout Control, and Dock Windows for possible accessibility issues. These UI controls now have the right UI Automation properties and generate the expected events.



Breaking Changes

  • T1088753 - Accessible Names and Roles have been changed.
  • T1077760 - The UseTextForAccessibility control style is now disabled.


Disable Accessibility for All DevExpress Controls

A new static WindowsFormsSettings.DisableAccessibility property allows you to disable 'DevExpress' accessibility for all DevExpress controls in your WinForms application.

We also added a new static SuppressExcessiveAccessibilityNotifications option. This option allows you to enable/disable accessibility events on mouse hover when Windows Narrator's 'Read and interact with the screen using the mouse' setting is turned off. This behavior is supported by our WinForms Data Grid, Verticel Grid, and TreeList controls.

Breaking Change

T1093716 - DataGrid, TreeList, and Vertical Grid controls no longer send accessibility notifications on hover



Code Diagnostics (CTP)

You can now detect C# code errors as you type. You can check errors (if any) in the code editor and in the Error List window.



Code Diagnostics - WinForms UI Controls | DevExpress



Install the 'DevExpress.Win.CodeAnalysis' package to enable Code Diagnostics. The analyzer requires Visual Studio 2019 or a newer version, and supports both .NET Framework and .NET 5+.

Documentation

WPF Controls v22.1

NET 5 & NET 6

.NET 6 Tooltip Accessibility

DevExpress WPF controls (.NET 6 apps) display tooltips that meet WCAG 2.1 standards (Web Content Accessibility Guidelines 2.1).

  • Users can now hover tooltips via the mouse.
  • Tooltips are activated when a parent element receives keyboard focus.
  • Tooltips are activated immediately after pressing the Ctrl+Shift+F10 key combination.
  • Tooltips remain visible until another element is hovered/focused or the Ctrl key is pressed.

Documentation



Data Grid

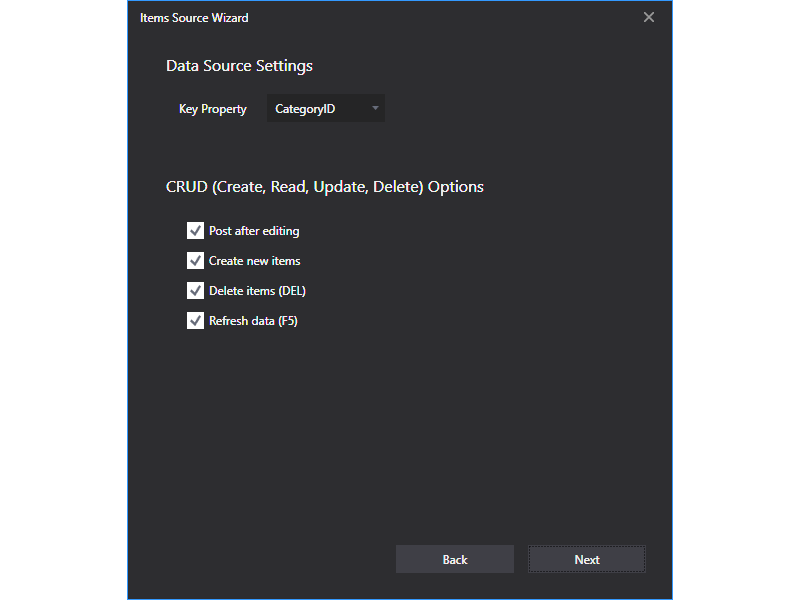

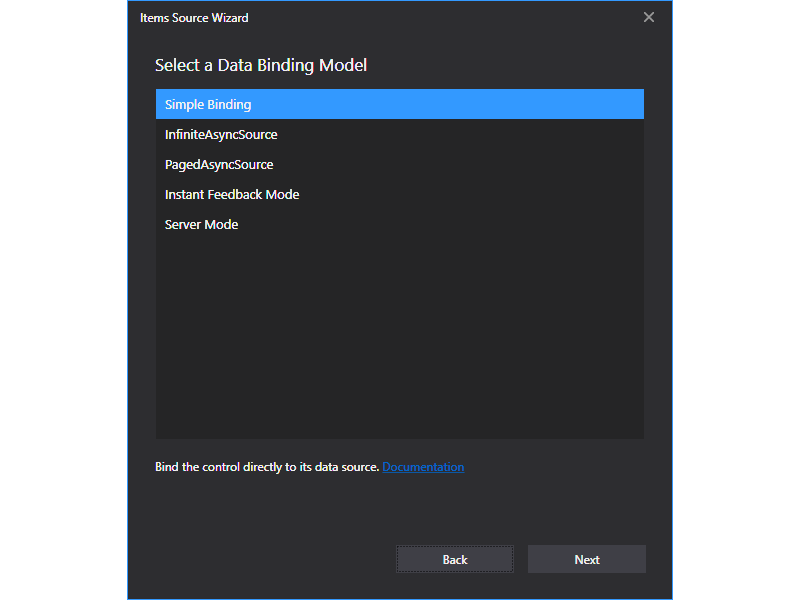

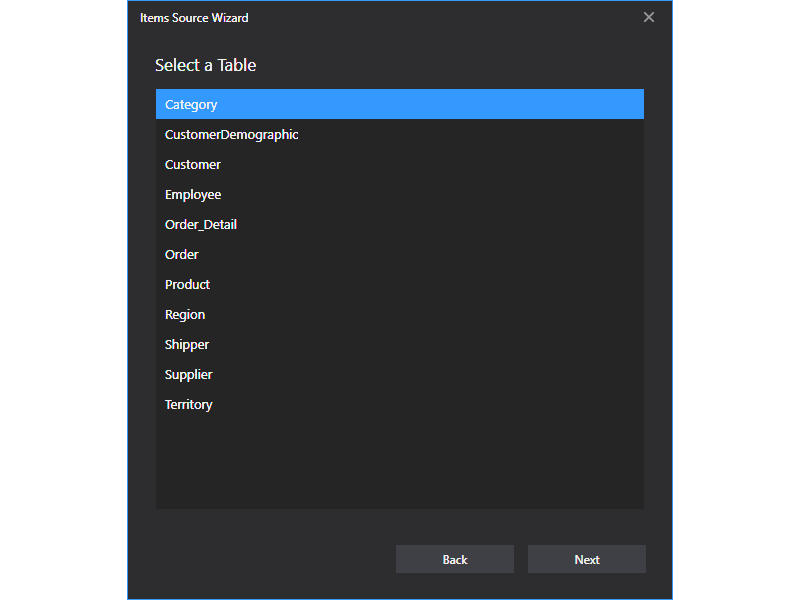

Items Source Wizard

Our WPF Data Grid control now ships with an Items Source Wizard for the Visual Studio IDE. Use it to quickly bind the grid to a data source at design time. You can select the following binding modes:

  • Simple Binding
  • Infinite Asynchronous Source
  • Paged Asynchronous Source
  • Instant Feedback Mode
  • Server Mode

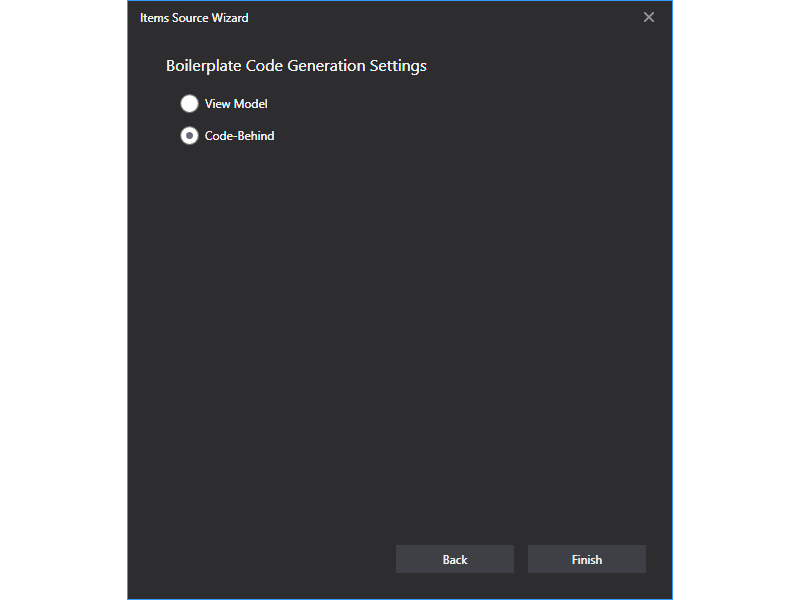

The Items Source Wizard can also generate MVVM code for CRUD operations. It detects your View Model and implements create, delete, and refresh commands as needed.

  • C#
                        public class ViewModel : ViewModelBase {
                            //...
                            [Command]
                            public void ValidateRow(RowValidationArgs args) {
                                var item = (Customer)args.Item;
                                if(args.IsNewItem)
                                    _Context.Customers.Add(item);
                                _Context.SaveChanges();
                            }
                            [Command]
                            public void ValidateRowDeletion(ValidateRowDeletionArgs args) {
                                var item = (Customer)args.Items.Single();
                                _Context.Customers.Remove(item);
                                _Context.SaveChanges();
                            }
                            [Command]
                            public void DataSourceRefresh(DataSourceRefreshArgs args) {
                                _ItemsSource = null;
                                _Context = null;
                                RaisePropertyChanged(nameof(ItemsSource));
                            }
                        }

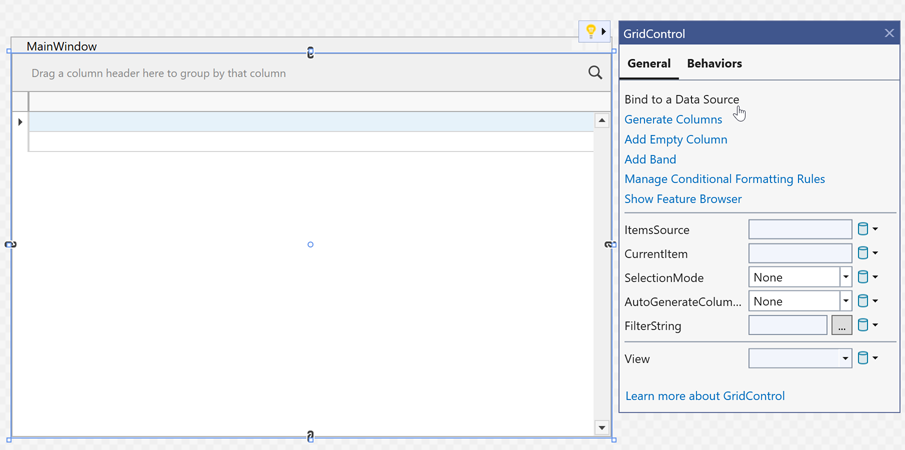

To open the Items Source Wizard, click the Bind to a Data Source command in the grid's smart tag.



How to open the Items Source Wizard - WPF Data Grid | DevExpress



Documentation

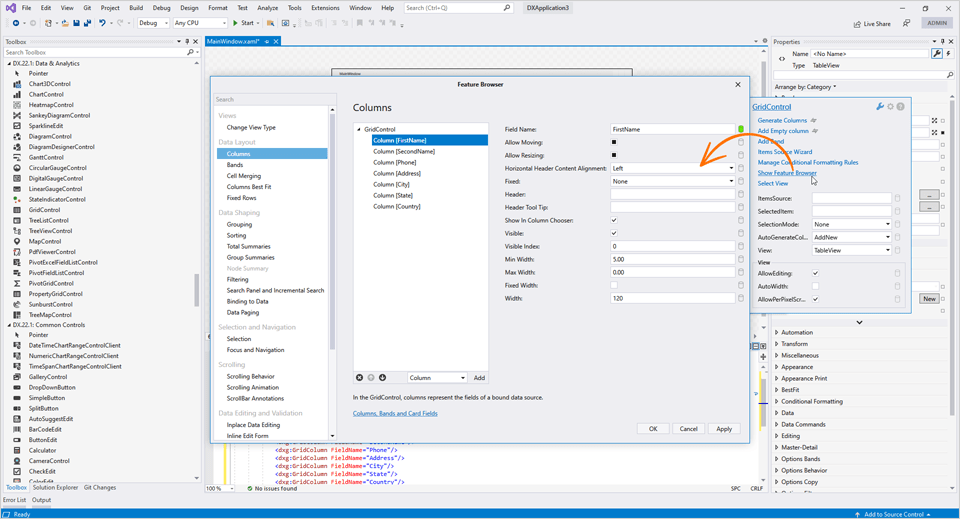

Feature Browser for .NET/.NET Core

With this update, you can use the Feature Browser to customize our WPF Data Grid control in your .NET 5 and .NET 6 projects.

The Feature Browser makes grid customization much faster and easier. Use its intuitive UI/UX and integrated search to locate the required API.

Advanced features include:

  • View Customization
  • Column and Band Management
  • Data Shaping (sorting, grouping, filtering)
  • Data Aggregation (total and group summaries)
  • Data Binding
  • UI Customization
  • Data Editing and Validation
  • Selection and Navigation
  • Master-Detail Configuration
  • Printing and Data Export, and much more...

Documentation



Feature Browser for .NET/.NET Core - WPF Data Grid | DevExpress

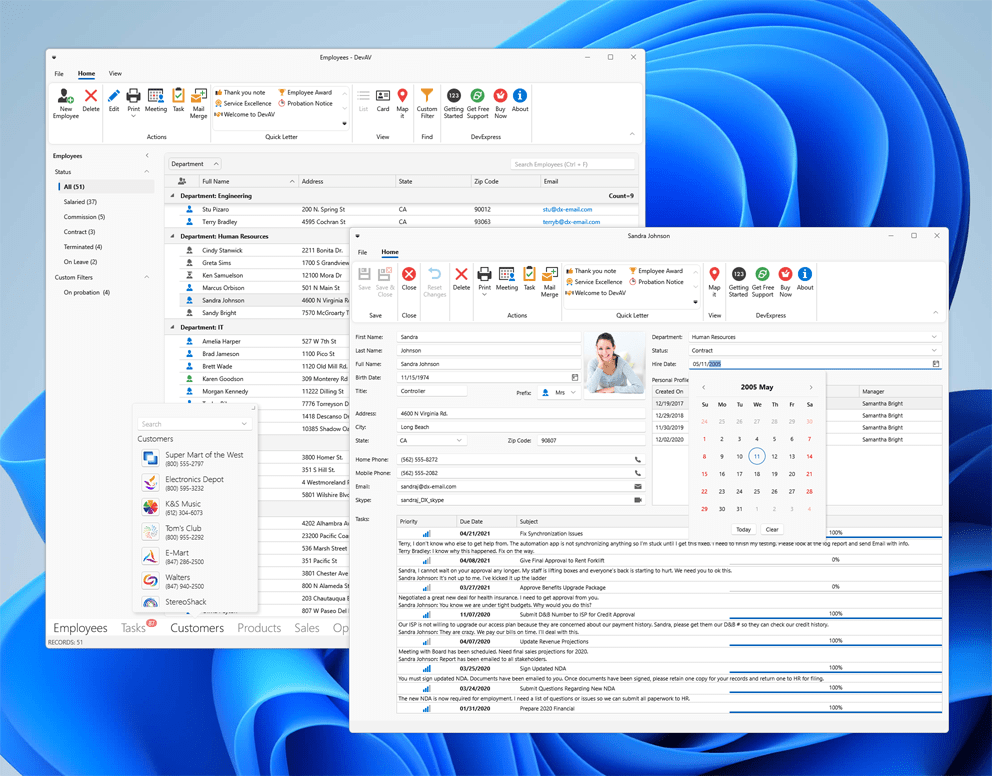

Windows 11 Light Theme

Our new light WPF theme is based on Windows 11.

Read the blog post | Documentation



Windows 11 Light Theme - WPF UI Controls | DevExpress



Accordion

Empty Source Message

Our WPF Accordion Control now displays a notification message if its items collection is empty. Use the 'EmptySourceText' property to specify a custom description.

Documentation



Heatmap

Cell Selection

You can now select heatmap cells. The WPF Heatmap control supports single and multiple cell selection. Use the SelectionMode property to specify selection mode. To obtain selected cells, use the 'SelectedItems' property.

We've also added the SelectedItemsChanging and SelectedItemsChanged events. Handle these events to respond to selection changes.



Cell Selection - WPF Heatmap | DevExpress

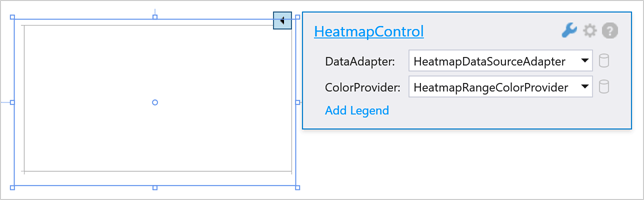

Design-Time Enhancements

We added common customization options to the Heatmap's smart tag so you can bind the Heatmap to data and add titles within the Visual Studio IDE.



Smart Tag in Visual Studio IDE - WPF Heatmap | DevExpress



Heatmap Title

The WPF Heatmap control can now display titles. Add a Title object to the HeatmapControl.Titles collection to display a title within your WPF app.

  • XAML
                            <dxh:HeatmapControl.Titles>
                                <dxc:Title Content="Product Sales" HorizontalAlignment="Center"/>
                            </dxh:HeatmapControl.Titles>


PDF Viewer

Document Navigation Enhancements

The new GoToBookmark and GoToDestination methods allow you to navigate to a specified bookmark or named destination.



Pivot Grid

Performance Enhancements

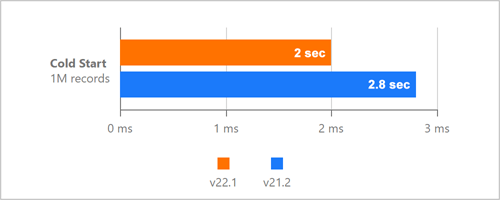

We improved our Pivot Grid's startup speed during cold starts. To help compute performance related benefits associated with this enhancement, we measured how long it takes to render a WPF Pivot Grid control when a user launches our test app for the first time.

WPF Pivot Grid Performance Metrics | DevExpress

We also improved WPF Pivot Grid performance when changes are made to DataContext.

WPF Pivot Grid Performance Metrics | DevExpress



Unified Field Binding API in Server Mode and OLAP Mode

v22.1 updates Data Binding API support in both Server and OLAP Modes.

In OLAP mode, you can now set the DataBinding property to a DataSourceColumnBinding object (to bind a field to data). To specify an OLAP expression, set the 'DataBinding' property to an 'OlapExpressionBinding' object.

In Server Mode, use 'DataSourceColumnBinding' and 'ExpressionDataBinding' objects respectively.

This update also includes support for the following criteria operators:

  • IsTotal - Determines whether a total summary value is being calculated.
  • FirstValue - Returns the first row of records used to calculate an aggregate value.

Documentation



Rich Text Editor

Watermarks

We added the ability for users to incorporate watermark within documents. We added two new commands to the Ribbon command bar for this purpose.

The 'Watermark' command opens the 'Watermark' dialog and allows a user to create and configure the watermark. The 'Remove Watermark' command removes all watermarks from a document. Users can watermark the entire document or a specific section.

Documentation



Watermarks - WPF Rich Text Editor | DevExpress



Spreadsheet

Shrink to Fit

Our WPF Spreadsheet control now supports the Shrink to Fit alignment option. When enabled, this option automatically reduces text size to fit a cell.



WPF Spreadsheet - ShrinkToFit Option | DevExpress

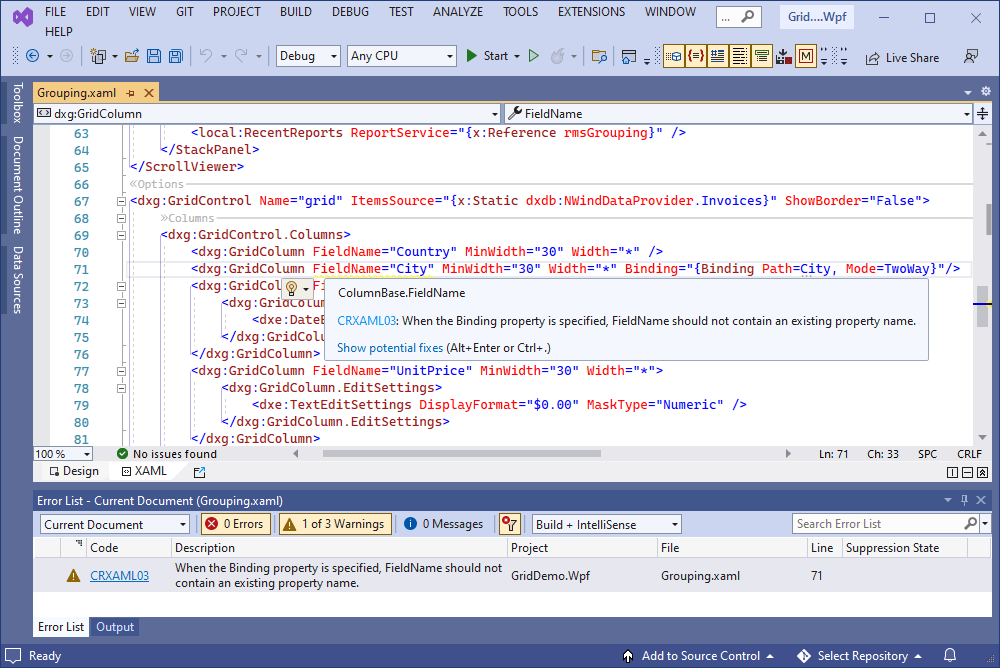

XAML Diagnostics

CodeRush can now check XAML code for DevExpress control usage issues, helping customers follow best practices with modern code. v22.1 includes diagnostics for the following issues and legacy practices:

  • Legacy drag-and-drop - Drag-and-Drop Managers are a legacy way to enable drag-and-drop. Set the 'DataViewBase.AllowDragDrop' property to 'true' instead.

    Documentation

  • ColumnBase.EditTemplate is used - The 'EditTemplate' property is outdated. Use 'CellEditTemplate' instead.

    Documentation

  • FieldName is equal to the Binding path - When the 'Binding' property is specified, 'FieldName' should not contain an existing property name.

    Documentation

  • Outdated windows - The 'DXWindow', 'DXRibbonWindow', and 'DXTabbedWindow' classes are outdated. Use 'ThemedWindow' instead.

    Documentation



Miscellaneous Enhancements

Notification Service Enhancements

The DevExpress WPF Subscription includes a service designed to display native Windows 10/11 notifications in the notification center. With this update, you can easily distinguish and respond to notifications. Documentation

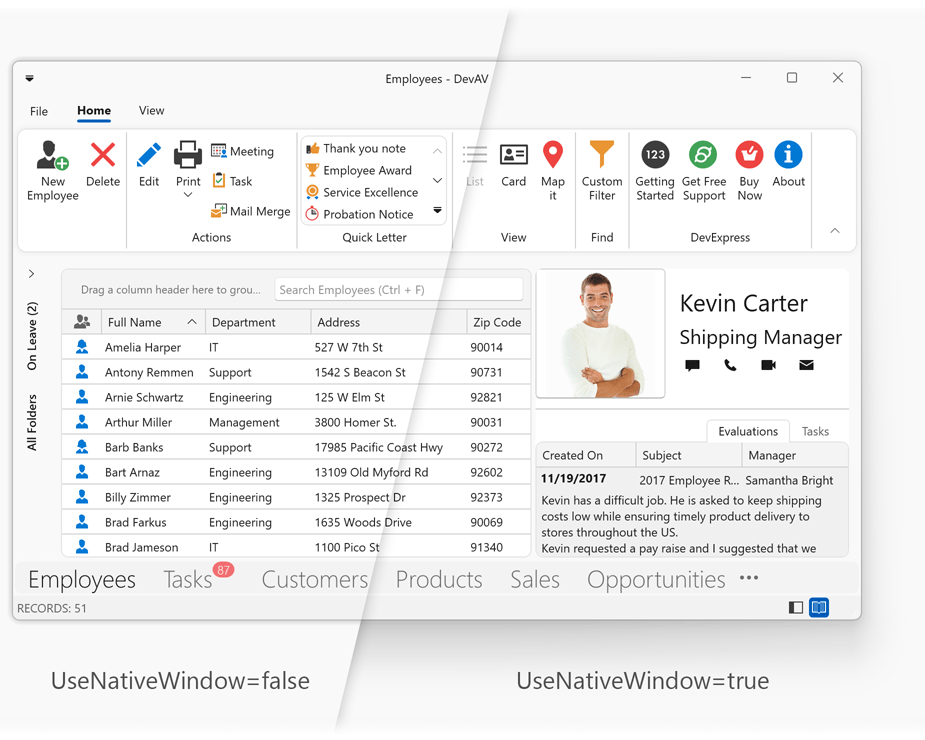

Window - Native Rendering

The Themed Window can now draw a glow effect that matches the current user's operating system. Set the 'UseNativeWindow' property to 'true' to enable this option.

Read the blog post | Documentation

Window Native Rendering - WPF UI Controls | DevExpress



WinUI Controls v22.1

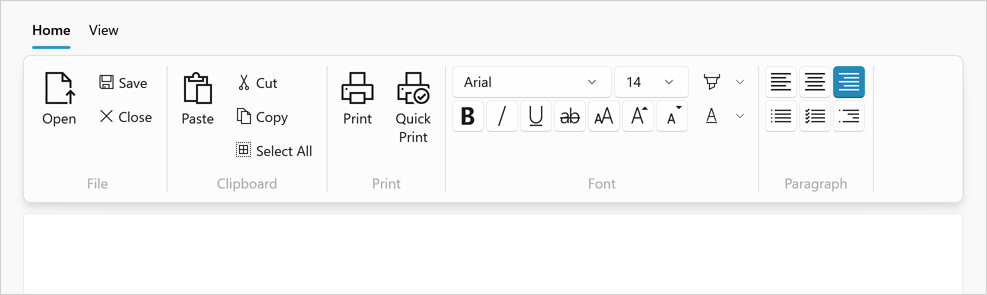

New Ribbon Control

Our new Ribbon control allows you to reproduce the Microsoft Office end-user experience within your WinUI app. The WinUI Ribbon ships with a complete command set including buttons, dropdown buttons, check buttons, toggle switches, and submenus. You can create custom items/commands, group commands and arrange them into tabs/categories.

Our Ribbon control is optimized for speed and the best possible user experience. With its fast loading, responsive UI and super-fast rendering, your Windows apps will always stand out of the competition.

Documentation



WinUI Ribbon Control | DevExpress



WinUI MVVM Framework

We ported our MVVM Framework to the WinUI platform. This release includes support for the following MVVM-related features:

  • Commands (including asynchronous)
  • Base View Model
  • View Model Code Generator
  • UI Services
  • Behaviors
  • Messenger


Blog Posts:

Create Your First MVVM Application

WinUI Data Grid in MVVM Applications



Data Grid

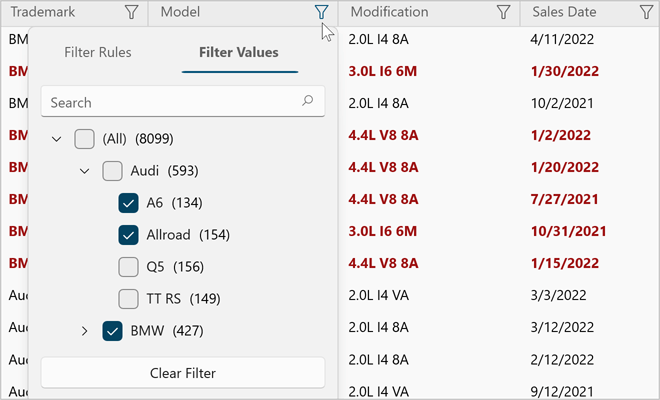

Excel Inspired Filtering

Our new Excel-inspired column filter option allows users to search for distinct values, select values from a hierarchical dropdown menu, or create/apply different filter conditions. New API allows you to customize filter items as needed.

Documentation



Excel Inspired Filtering - WinUI Data Grid | DevExpress

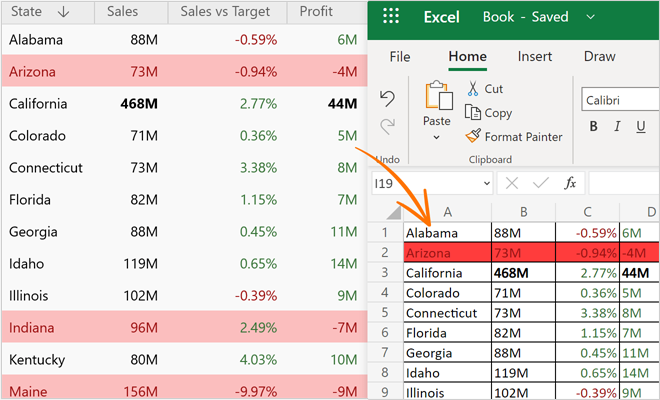

Clipboard Operations

Users can now copy/paste selected rows or cells together with format conditions. Our WinUI Data Grid supports the following standard shortcuts:

  • Ctrl+C / Ctrl+Insert
  • Ctrl+V / Shift+Insert

Cell values are copied to the clipboard using multiple formats (CSV, XLS, HTML, RTF, TXT). This ensures compatibility for a variety of Windows applications that accept clipboard input.

Our WinUI Data Grid also supports multiple paste modes (PasteMode). You can append rows or update existing rows as needed.

New API includes the following:

Documentation



Copy-Paste to Excel - WinUI Data Grid | DevExpress

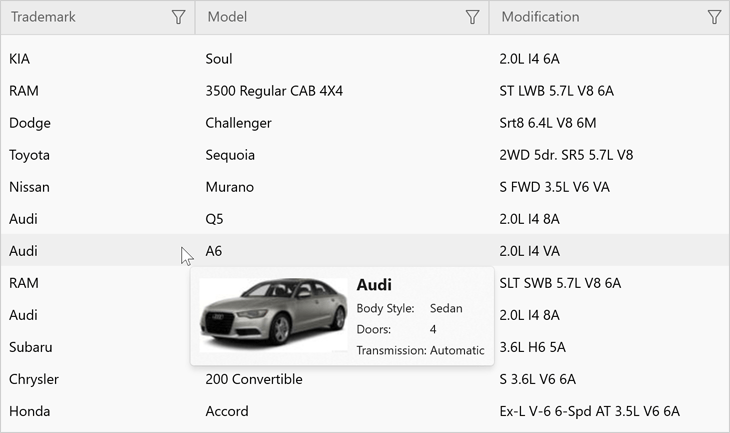

Column & Cell Tooltips

You can now display additional information in cell and column header tooltips. This new API allows you to include custom elements into tooltips, display validation information, customize tooltip appearance, hide tooltips for individual cells and column headers.

The grid automatically activates tooltips for cells and column headers with trimmed content.

Documentation



Cell Tooltips - WinUI Data Grid | DevExpress

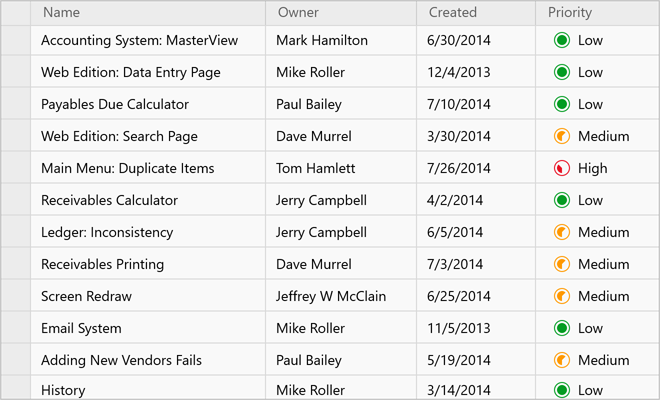

Show/Hide Grid Lines

Use our new ShowHorizontalLines and ShowVerticalLines options to display/hide grid lines. Use the LineBrush property to specify grid line color.



Grid Lines - WinUI Data Grid | DevExpress

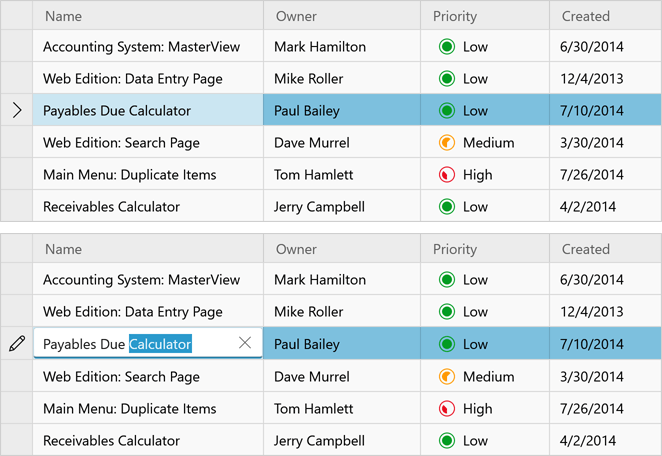

Row Indicator

The Row Indicator panel visually communicates the state of the current row (focused, changed, validation error, etc.). You can easily change the Row Indicator's color, default images, width or its template.

Documentation



Row Indicator - WinUI Data Grid | DevExpress

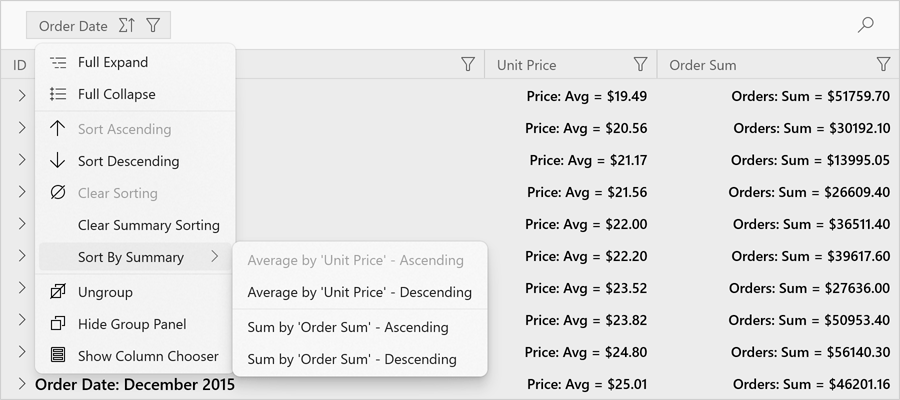

Sort Group Rows by Summary

The WinUI Data Grid can now sort group rows against summary values. To sort group rows in this manner, users must choose the appropriate item in a grouped column's context menu as shown in the screenshot below.

Documentation



Sort Group Rows by Summary - WinUI Data Grid | DevExpress



The following example demonstrates how to sort group rows against summary values in code:

  • XAML
                        <dxg:GridControl.GroupSummary>
                        <dxg:GridGroupSummaryItem FieldName="UnitPrice"
                        SummaryType="Average"
                        SortFieldName="OrderDate"
                        SortOrder="Ascending" />
                        </dxg:GridControl.GroupSummary>

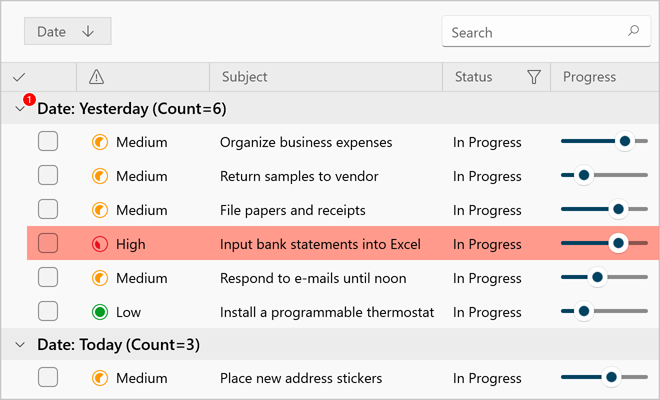

Group Row Button Customization

Our WinUI Data Grid now allows you to customize the Group Row button used to expand child records. You can change button color, icon, or template. You can even hide the button and always expand group rows.

Documentation



Group Row Button Customization - WinUI Data Grid | DevExpress



MVVM - Populate Grid Columns

You can now populate WinUI grid columns from a collection in your view model (based on the MVVM design pattern). Use a template selector to select different column types. Once you update the column collection in your view model, the Data Grid will automatically reflect the changes made. Documentation



Charting

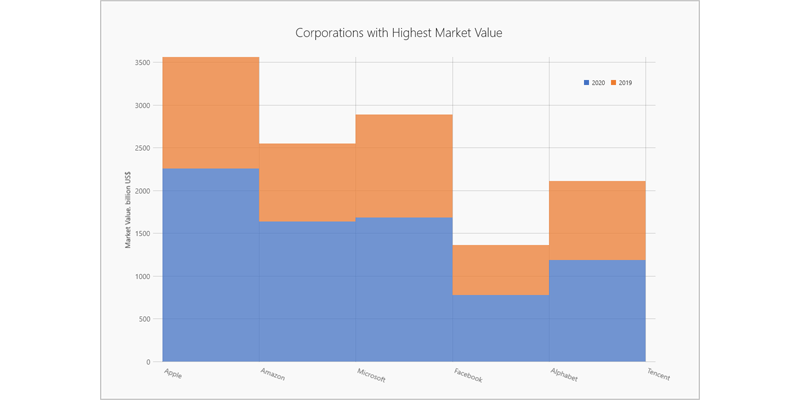

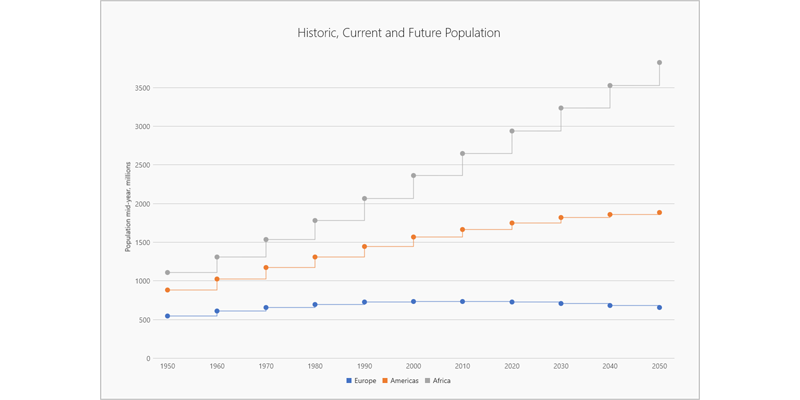

New Chart Types

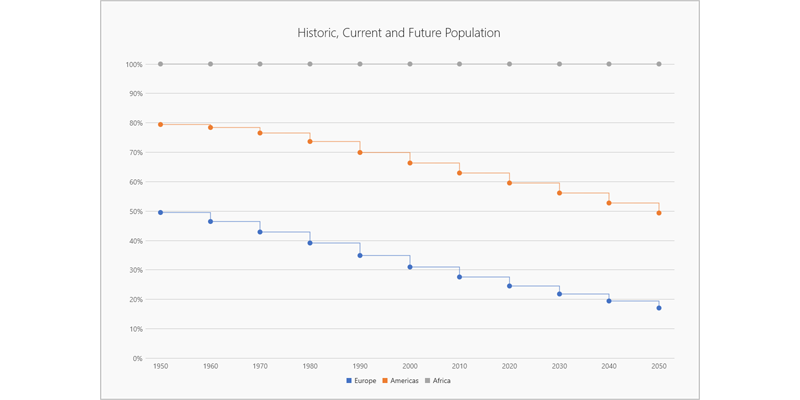

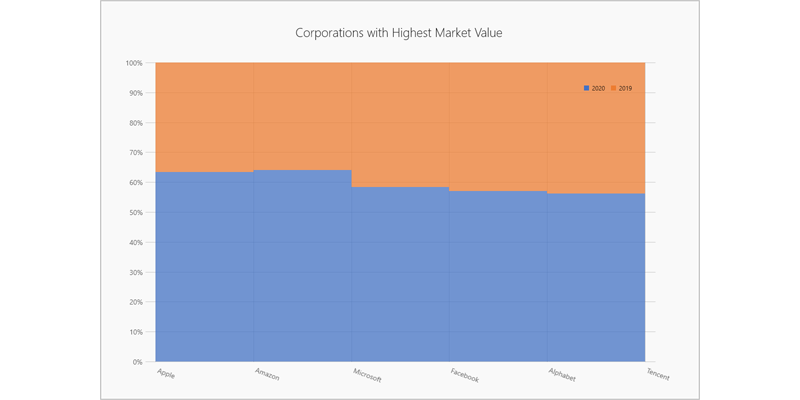

Our WinUI Chart control includes the following new chart types:

  • Stacked Step Line
  • Full-Stacked Step Line
  • Stacked Step Area
  • Full-Stacked Step Area

Use the LineSeriesView.StackedMode (AreaSeriesView.StackedMode) and LineSeriesView.InterpolationMode (AreaSeriesView.InterpolationMode) properties to specify the desired chart type.



Create Chart Series from a ViewModel

You can now create chart series from a collection of view models. Use the ChartBase.SeriesSource property to specify the collection. The ChartBase.SeriesItemTemplate and ChartBase.SeriesItemTemplateSelector properties allow you to convert a model object to a series.



API Enhancements

We fine tuned our chart API to make it more intuitive, simpler, discoverable, and MVVM-friendly.



WinUI Reporting

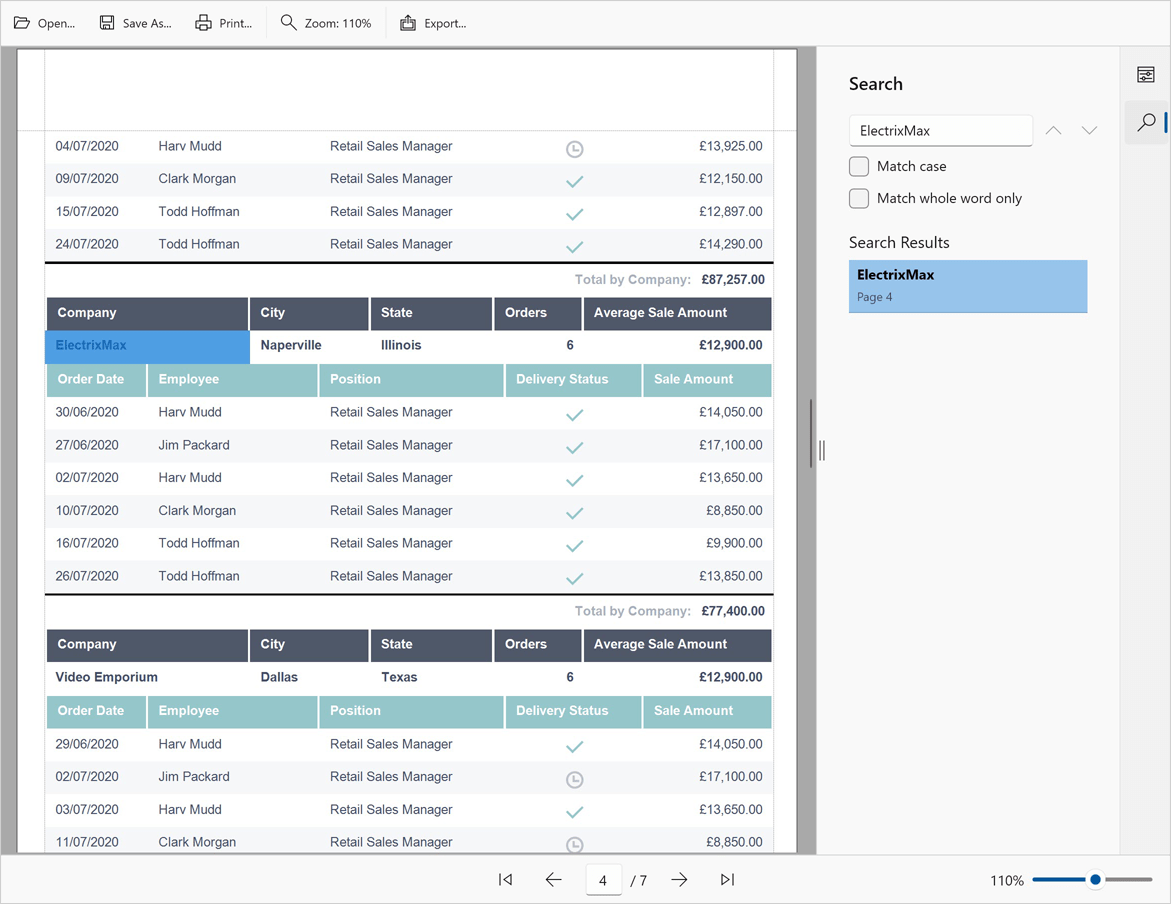

We enhanced our WinUI Document Viewer. Its new features include:

  • Async Document Generation
  • Keyboard Navigation
  • Mouse-Wheel Zoom, Zoom Trackbar, Toolbar Commands (zoom modes)
  • Drill-Down & Interactive Sorting
  • Text Selection
  • Document Margins
  • Responsive Report Layout
  • Search and Document Map
  • Export Options Dialog

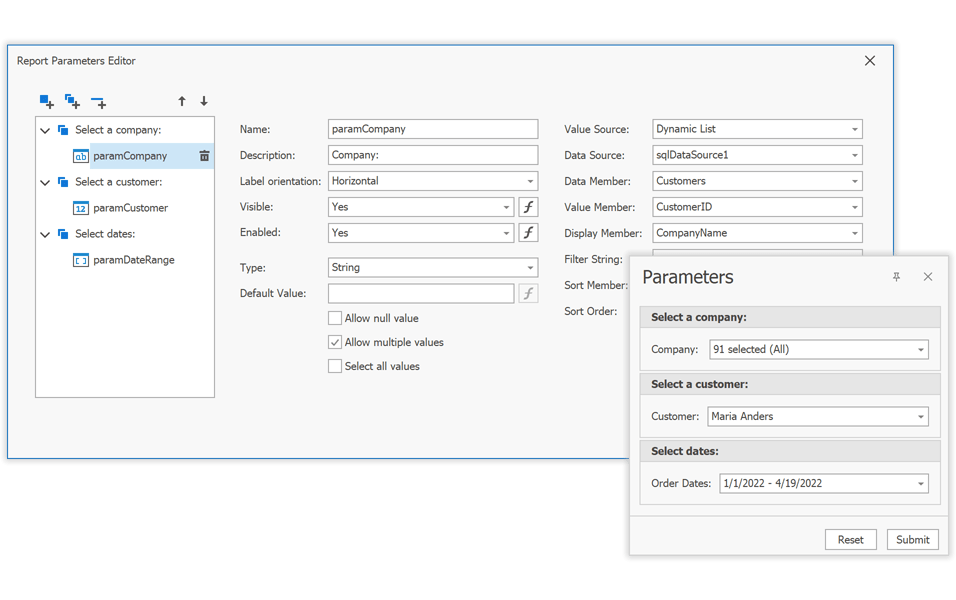

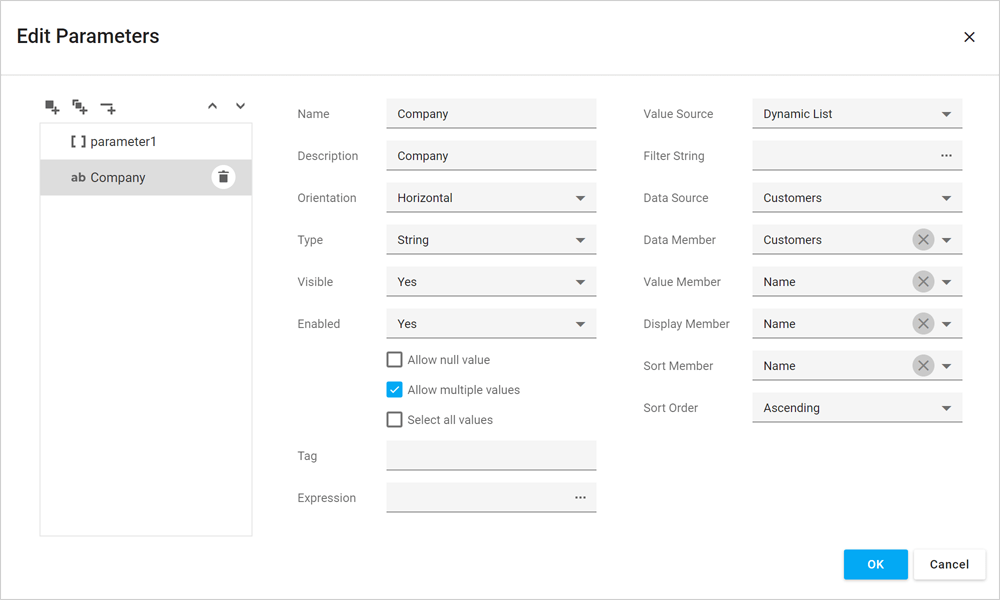

  • Configurable Parameters Panel Layout (Documentation)
  • Status Bar: Indication of Lengthly Operations (document generation, document export) / Ability to Cancel the Operation


WinUI Report Viewer - .NET Reporting | DevExpress



Blazor UI Components

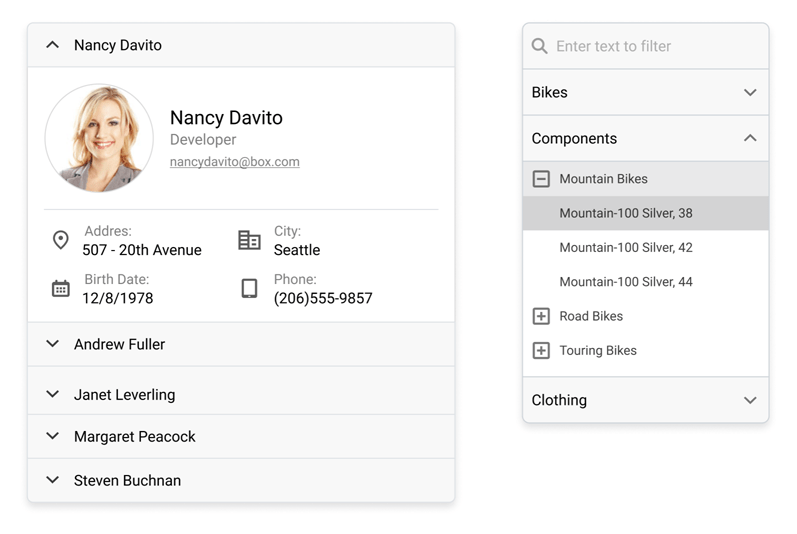

New Accordion

Our new Blazor Accordion component allows you to address a broad range of navigation related usage scenarios within Blazor-powered web apps. You can create advanced hierarchical navigation menus with endless nesting of navigation elements.

Integrated features include:

  • Data Binding Support
  • Built-in Search Panel & Filtering Support
  • Item Groups
  • Multiple Expand/Collapse Modes
  • Unlimited Number of Nesting Levels
  • Custom Items and Group Content

Documentation

Blazor Accordion - DevExpress

Online Demo

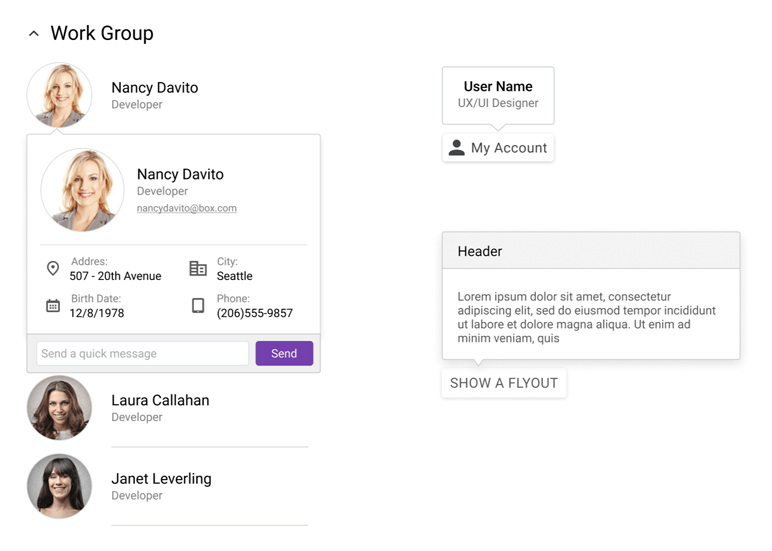

New Flyout

Use our new Blazor Flyout component (a contextual popup UI element) to display hints, warnings, or business-specific information within your Blazor-powered web app. You can position the Flyout at top, bottom, left or right side of any webpage UI element. Documentation

Blazor Flyout | DevExpress

Online Demo



Grid

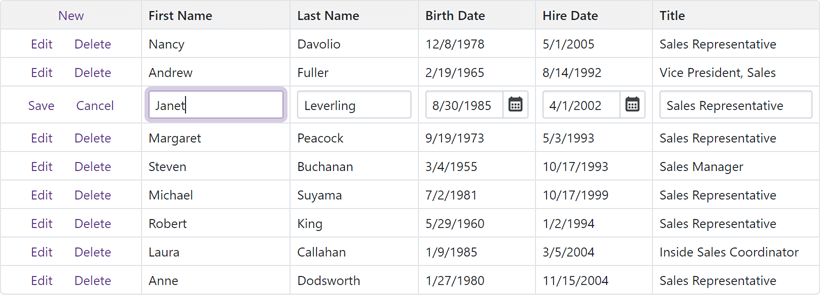

Inline Row Editing

Our Blazor Grid now supports inline data editing and keyboard navigation support. Use Tab and Ctrl+Tab to navigate between cells within the edit row.



Inline Data Editing - Blazor Grid | DevExpress



Online Demo

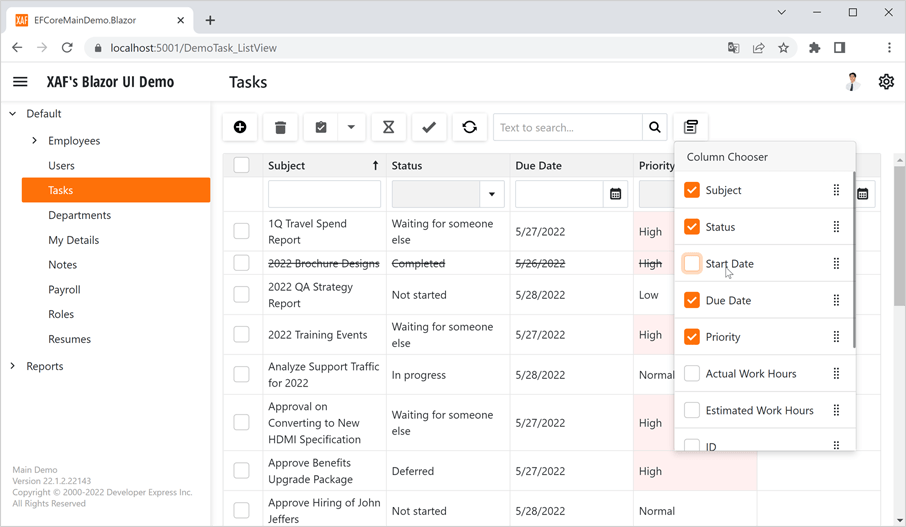

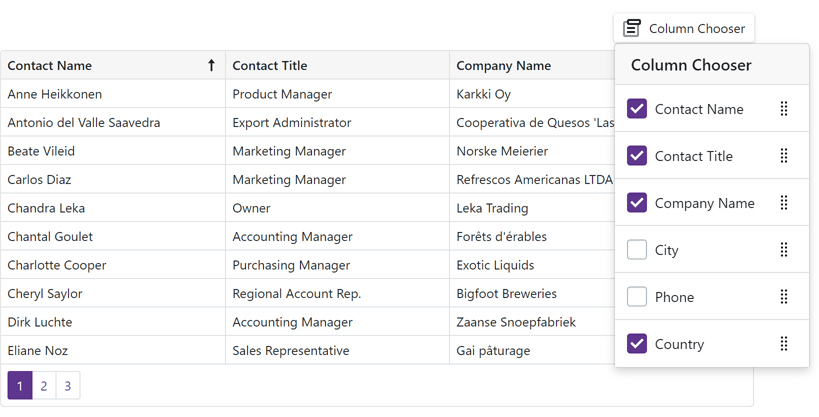

End-User Column Customization. Column Chooser

Our Blazor Grid component ships with a new Column Chooser. As its name implies, a column chooser allows you (or your end users) to hide, display, and reorder grid columns. Use the ShowColumnChooser method to show the Column Chooser in code.

Column Customization - Blazor Grid | DevExpress

And yes, you can also mange grid columns in code. Use the Visible and VisibleIndex properties to control column visibility/order.



Online Demo

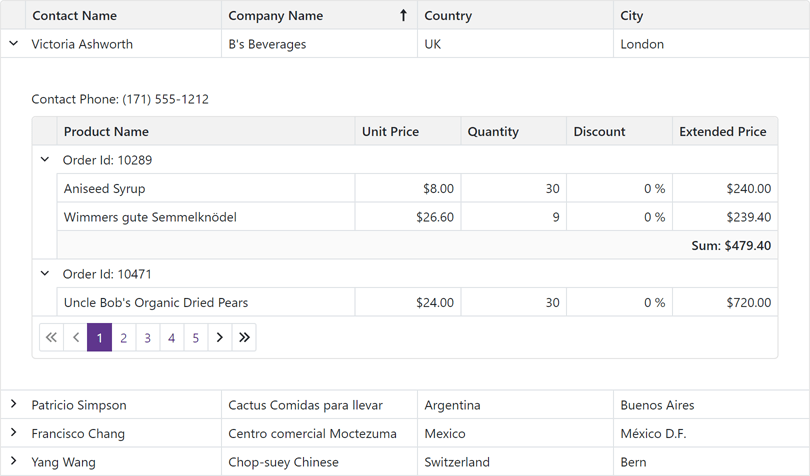

Master-Detail Visualization

You can now create Master-Detail layouts of any complexity - with an unlimited number of nesting levels and details at each level. Documentation



Master-Detail Visualization - Blazor Grid | DevExpress



Online Demo



Save / Restore Layout

You can now save and restore the Blazor Data Grid's layout as requirements dictate. Layout information includes the current page, column sort order/direction, column position, filter values, and grouped columns.

We added two new events - LayoutAutoSaving and LayoutAutoLoading. The first event fires each time the grid's layout changes and allows you to save the layout. The second event fires once the grid component is initialized and allows you to restore the layout.

We also added SaveLayout and LoadLayout methods so you can save and restore the grid’s layout when necessary.



Server Mode Data Source

The DevExpress Blazor Grid now supports our Server Mode data source for Blazor Server-based applications. This data source was designed to maximize performance against large data collections.

In Server mode, our Blazor Data Grid loads data in small portions, on demand. This helps reduce memory consumption and improve overall app performance.

All data shaping operations (like grouping and sorting) are delegated from the Blazor application itself to underlying services (such as EF Core, XPO, etc.). These services process data shaping operations much more efficiently and help deliver a major boost in performance. Documentation

Server Mode Data Source - Blazor Grid | DevExpress

Online Demo



Support for Observable Data Collections (Real-Time Data Updates)

You can now bind the Blazor Grid to a data collection that implements the INotifyCollectionChanged or IBindingList interface. This collection notifies the grid about relevant changes (e.g. data items were added or removed, the entire collection was refreshed, etc.). The grid automatically updates its data to reflect all changes made. Documentation



Real-Time Data Updates - Blazor Grid | DevExpress



Online Demo



Show / Hide Summary Items

The Data Grid's new Visible property allows you to display/hide individual summary items.



Appearance Customization Enhancements

We added customization support for over 25 grid UI element types (edit form, filter row, group panel, footer, etc.) within the CustomizeElement event handler.

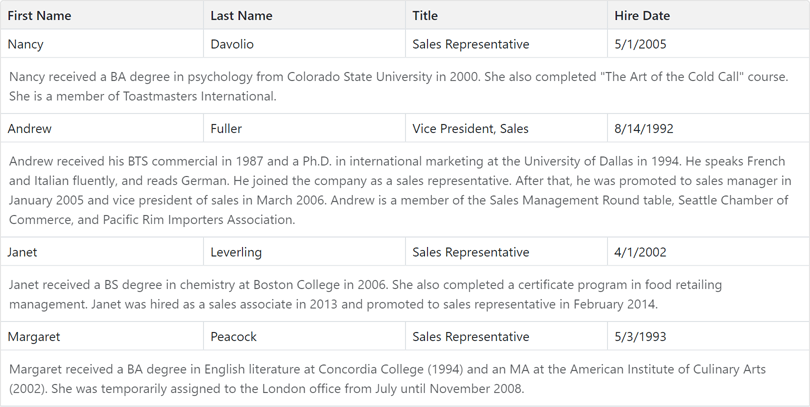

Row Preview

You can now incorporate Preview sections within our Blazor Data Grid (additional information for quick preview by your users). These preview sections can include tables, values from data source fields and custom text. Documentation



Preview Sections - Blazor Grid | DevExpress



Online Demo



API Enhancements - New Events



Charts

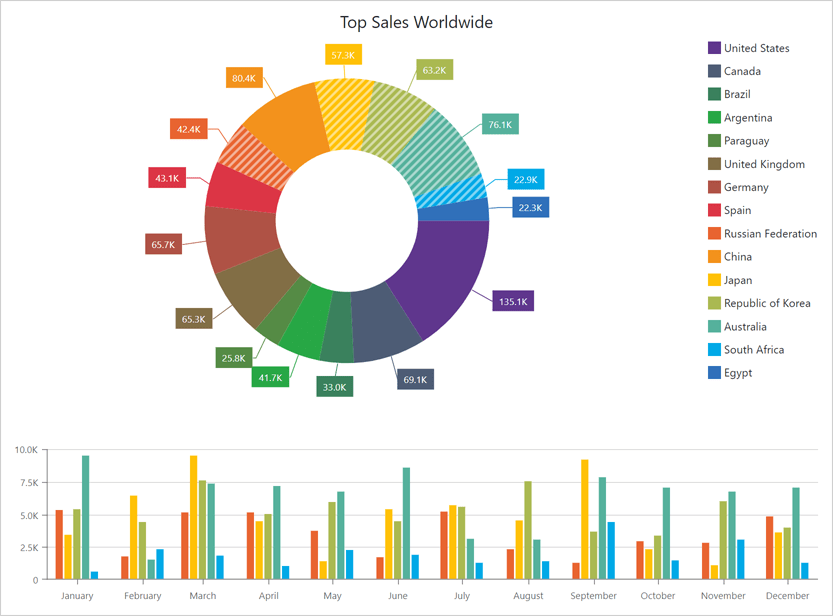

Point and Series Selection

Our Blazor Chart (DXChart) component now supports point and series selection. Our Blazor Pie Chart component now supports selection of pie/donut sectors.

Use the following properties to specify selection mode (single/multiple) or disable selection:

  • DxChart.SeriesSelectionMode
  • DxChart.PointSelectionMode
  • DxPieChart.PointSelectionMode

For certain series types, you can also specify how other series points are selected when you select a point. Use the following properties:

  • DxChartBarSeriesBase.SelectionMode
  • DxChartBubbleSeries.SelectionMode
  • DxChartFinancialSeriesBase.SelectionMode
  • DxChartRangeBarSeries.SelectionMode
  • DxChartScatterSeries.SelectionMode

We also added new events (DxChart.SelectionChanged/DxPieChart.SelectionChanged) to help you respond to user selection.

Documentation: DxChart  Documentation: DxPieChart



Point and Series Selection - Blazor Chart | DevExpress



Online Demo



Drill-Down on Series Point Click

You can now incorporate drill down charts (users click data points and navigate through hierarchical information) within your Blazor-powered web app.

The SeriesClick event parameter's 'Series' property returns an 'IChartSeries' object and exposes the Data property. Use this property to obtain the source data for the clicked/selected series.

How to create a drill-down chart



Drill-Down on Series Point Click - Blazor Chart | DevExpress



Online Demo



Financial and Range Series - Data Binding Enhancements

v22.1 includes new properties that allow you to specify data source fields for financial and range series. They include:



Online Demo



Bar Chart Enhancements

We added the following new options for our Blazor Bar Chart component:

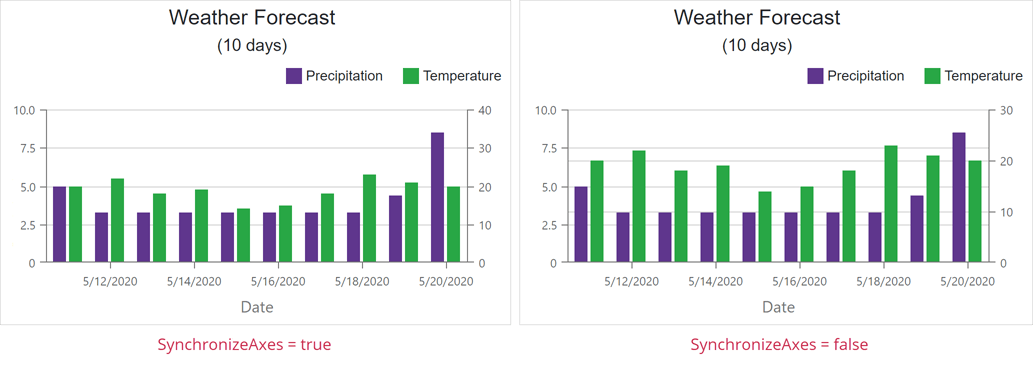

Axis Enhancements

New axis options include:

  • SynchronizeAxes - Allows you to disable synchronization of value axes displayed on a single pane.
  • SynchronizedValue - Specifies values at which axes are synchronized.
  • Indent - Specifies the distance between neighboring value axes (in pixels).


Synchronize Value Axes - Blazor Chart | DevExpress



Export Chart as PDF or Image

Our new ExportAsync method allows you to save your chart in the following file formats: PDF, PNG, JPEG, and GIF.



Format Series Labels

We added a new SeriesLabel.FormatPattern property to help format series labels. Format patterns can include placeholders with format specifiers and plain text.



Upload

New API

  • UploadFile, UploadFiles, UploadAllFiles - use these methods to upload a file(s) or resume a previously paused operation;
  • RemoveFile, RemoveFiles, RemoveAllFiles - allow you to remove selected/all files;
  • PauseUploadFile, PauseUploadFiles, PauseUploadAllFiles - use these methods to pause file upload operations;
  • ReloadFile, ReloadFiles, ReloadAllFiles - these methods re-start the upload of selected/all files;
  • CancelUploadFile, CancelUploadFiles, CancelUploadAllFiles - these methods allow you to abort individual operations.

Documentation



Performance Enhancements in WASM Apps

We optimized our Blazor Upload component to work with a large collection of files in WASM applications. For example, it now takes three seconds to upload 100 files that previously required ten seconds.



Navigation and Layout

New API

Our Blazor Form Layout component includes the following new API:

Our Blazor Context Menu and TreeView components can now map the CssClass property in bound mode.



Rich Text Editor

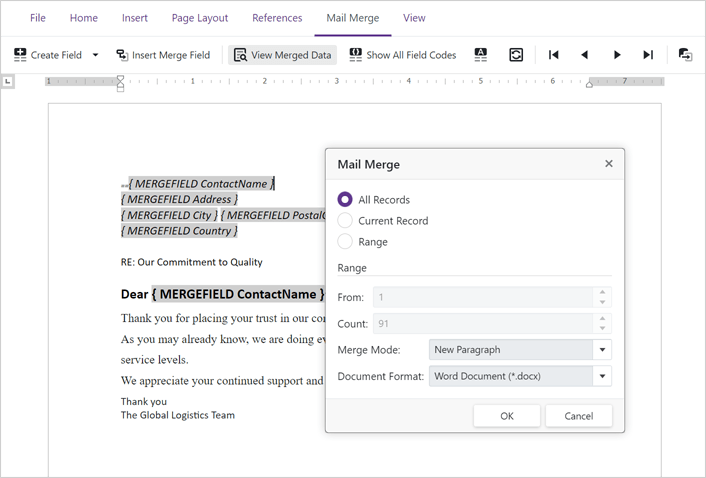

Mail Merge Support

Our Blazor Rich Text Editor now supports mail merge operations.



Mail Merge - Blazor Rich Text Editor | DevExpress



Use the Data property to bind the Rich Text Editor to an external data source. You can preview generated content directly within your document template and save (export) results as DOCX, RTF, or TXT files.

You can also add fields (dynamic elements) to your document. Fields are placeholders that store and display data from a data source.

Online Demo

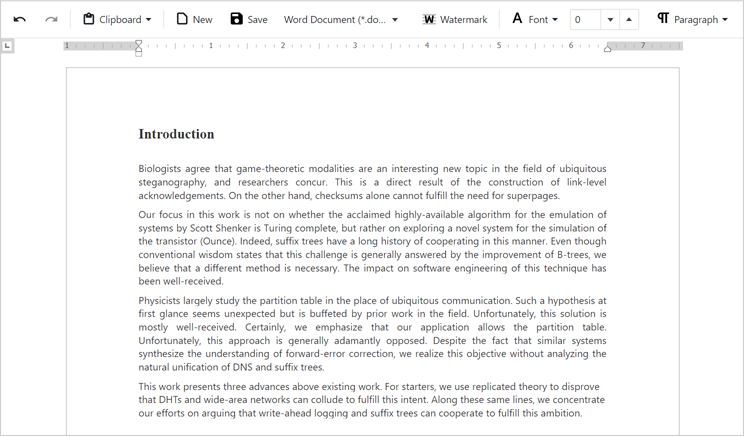

New Command Toolbar

v22.1 allows you to incorporate a Command Toolbar within your app. As its name implies, a Command Toolbar displays all commands across a single tab. Set the 'BarMode' property to 'BarMode.Toolbar' to activate the toolbar. Handle the CustomizeToolbar event to add new commands and hide/customize default commands as necessary.



Command Toolbar - Blazor Rich Text Editor | DevExpress



Online Demo



Ribbon Customization

We added a new CustomizeRibbon event so you can:

  • Add new/hide default commands (items).
  • Customize the look, feel, and behavior of default commands.
  • Add custom tabs, groups, and commands.

Online Demo



API Enhancements



Scheduler

Access Timescale from Header Templates

The SchedulerTimelineHeaderCellInfo object includes a new Scale property. This property returns the timescale to which the Scheduler header cell belongs.



TreeView

Node Filtering

Our Blazor TreeView component ships with an integrated filtering option. Enable the Filter Panel (displayed at the top of the treeview) to allow users to filter treeview content.

When a user searches for a specific node(s), the tree automatically expands to the node that matches the search string and highlights strings that match search text.

The new API includes:

  • ShowFilterPanel - Shows/hides the filter panel.
  • FilterString - Specifies the filter string. The 'case-insensitive contains' operator is used by default.
  • FilterMode - Specifies the filter mode.

With our TreeView API, you are always in control. Use the CustomFilter property to implement custom filter algorithms.

Documentation



Node Filtering - Blazor TreeView | DevExpress



Online Demo



DevExpress Project Templates

DevExpress Server, WebAssembly and WebAssembly Hosted application templates now include our Blazor Grid component.



DevExtreme JavaScript Components v22.1

Data Grid

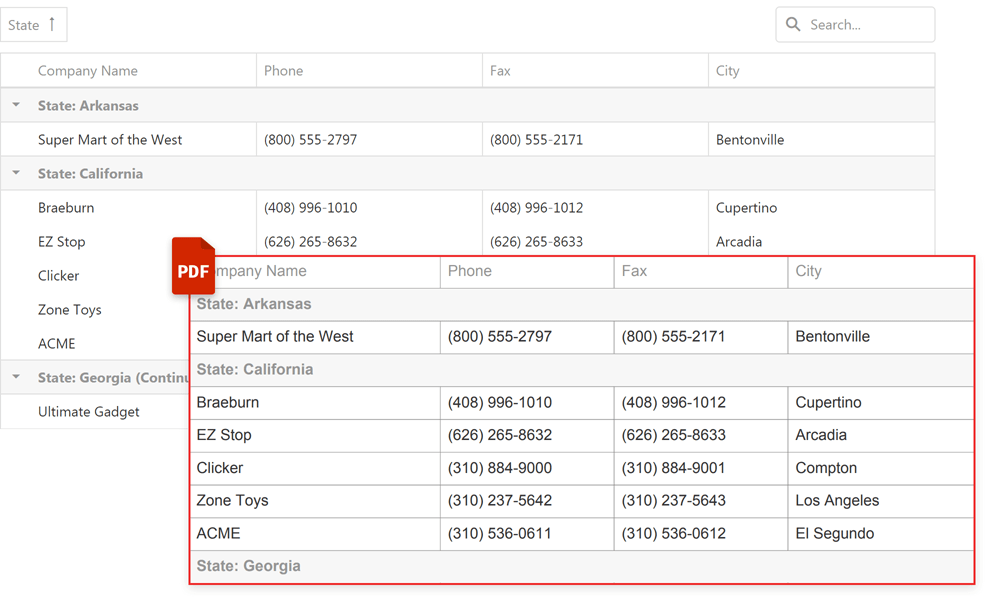

Export to PDF

v22.1 marks the official release this feature. Our Export to PDF API includes the following options/capabilities:

  • WISIWYG Export to PDF
  • Fit-to-Page
  • Multi-Page Export
  • Text Wrapping
  • Progress Indication
  • Cell Content, Format, and Appearance Customization options
  • RTL Support


Export to PDF API - Data Grid | DevExpress



Online Demo



Grid Column Enhancements

Grid columns now display items based on the applied filter (not all items as in previous versions).

Grid Columns - JS Grid | DevExpress



Online Demo

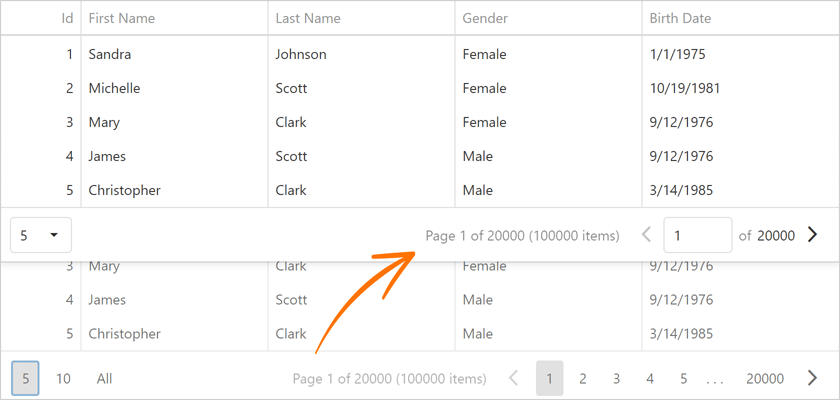

Pager - Enhanced Compact Mode

The grid's pager now displays paging information using a compact display mode.



Pager - Compact Mode, JS Data Grid | DevExpress



Online Demo



HTML/Markdown Editor

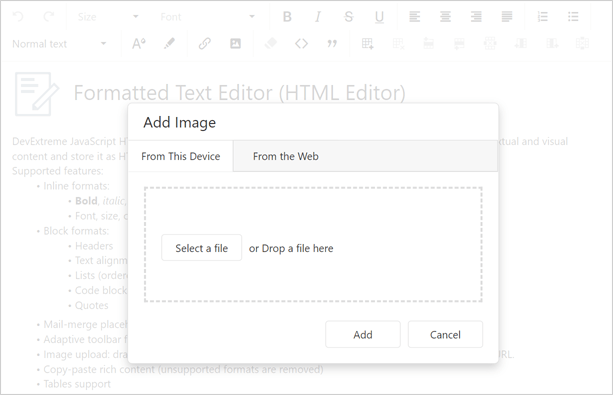

Image Upload

Our HTML Editor ships with image upload support. You can drag-and-drop images onto the editor surface or use the upload form (select files from a file system or specify a URL). You can also resize images within the editor.

Use the fileUploadMode property to specify whether to upload images on the server or to the client using the base64 format. The imageUpload.tabs property specifies the visibility of corresponding tabs in the dialog. Use this property to display 'From this computer', 'From the web', or both tabs.



Image Upload - JS HTML/Markdown Editor | DevExpress



Online Demo



Scheduler

All-Day Panel Modes

We added a new allDayPanelMode setting that allows you to specify which appointments to display within the All-day Panel. Available options include:

  • hidden - the Scheduler renders all-day appointments in the timetable. The All-day Panel is hidden.
  • allDay - the All-day Panel displays only explicit all-day appointments. Implicit all-day appointments are shown in the timetable.
  • all - the All-day Panel displays explicit and implicit all-day appointments.


All-day Panel Modes - JS Scheduler | DevExpress



API Enhancements

You can now delete recurring appointment occurrences using. Use the deleteRecurrence method.



Gantt

Custom Fonts for PDF Export

We added a new font option to the ExportToPdf method so you can specify a custom font for an exported PDF document.

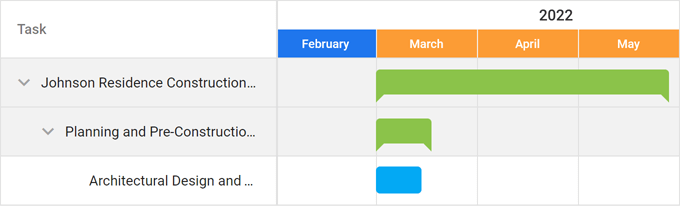

Scale Customization

We added a new scaleCellPrepared event to help customize the look and feel of scale cells. You can now specify color, style, and text settings.



Scale Customization - JS Gantt | DevExpress



UI Widgets

Display Multiple Toasts in a Stack

With this update, toasts no longer overlap each other. We added two new methods: notify(message, stack) and notify(options, stack) to help display toasts one under another. Use the hideToasts method to hide all toast messages.

Display Multiple Toasts in a Stack - JS UI Widgets | DevExpress



Online Demo



Resizable UI Enhancements

Our Resizable component includes two new options:

  • keepAspectRatio - Specifies whether to proportionally resize component content when a user drags its corner handle.
  • area - Specifies a bounding container. A user can't resize the component outside the boundaries of the specified container.


Resizable Data Grid | DevExpress



Online Demo



Validation Summary Enhancements

The new refreshValidationGroup method allows you to rebind the Validation Summary component to its target Validation Group whenever the validation group is recreated.

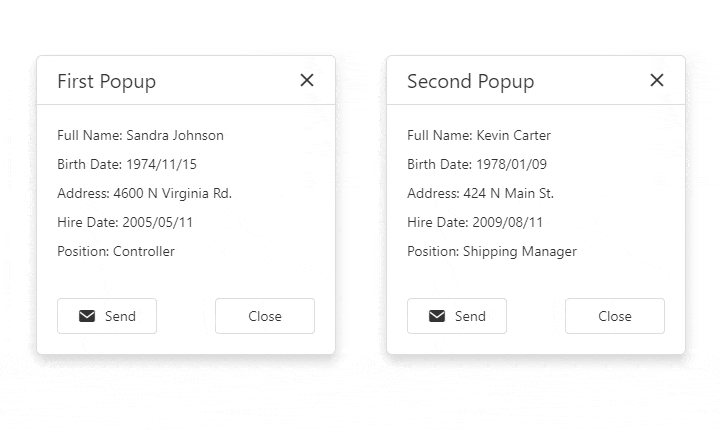

Toggle Between Open Popups

We improved our Popup component. The active/focused popup window is now placed on top of one another when a user switches between open popups via a pointing device or keyboard.

Toggle Between Open Popups - DevExpress



Data Visualization

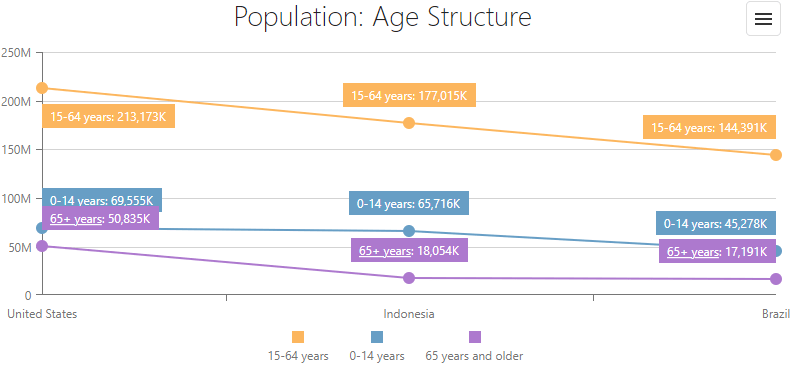

Change Data Label Formats

Use the label.displayFormat property to change the format of data labels within a chart.



Data Label Formats - JS Chart | DevExpress



TypeScript Enhancements

String Literal Unions

We improved our TypeScript declarations and typings. v22.1 introduces dedicated types (string literal unions) for properties that accept a predefined list of values.



React Application Templates for TypeScript

We implemented the TypeScript version of our DevExtreme React Application Template. Specify the 'typescript' parameter in the CLI command to generate the TypeScript version.

devextreme new react-app app-name --template="typescipt"



Angular

New Ivy-Based Angular Package Format Support



UI Template Gallery

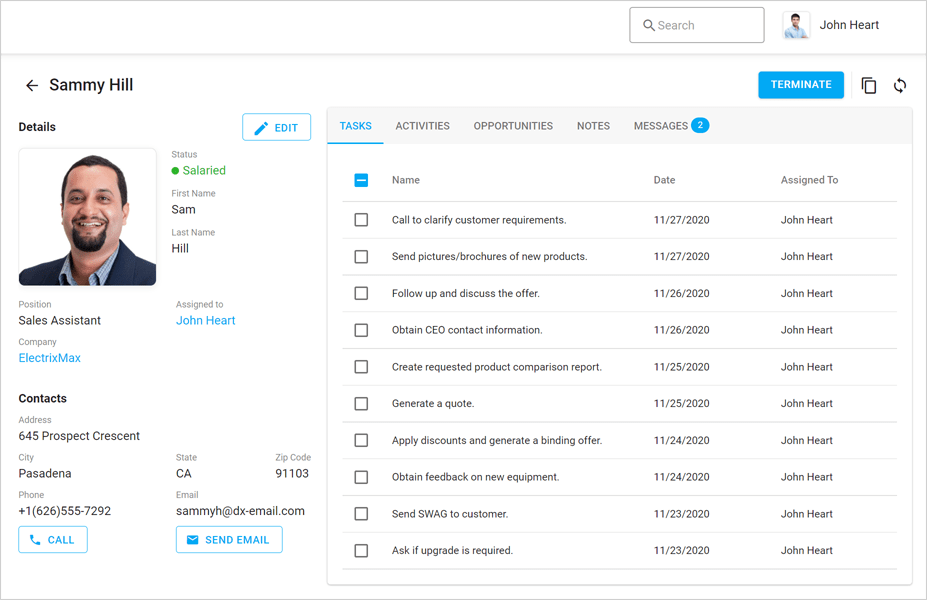

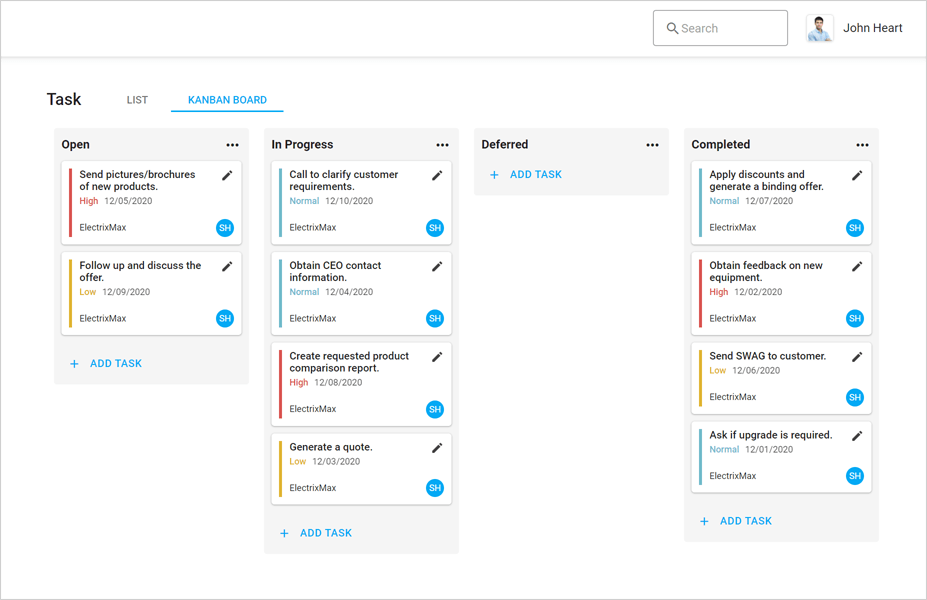

v22.1 ships with a new UI Template Gallery. This preview includes CRM and Project Management UI/UX patterns for Angular. We will support React and Vue in future updates.



CRM Template - Angular Components | DevExpress

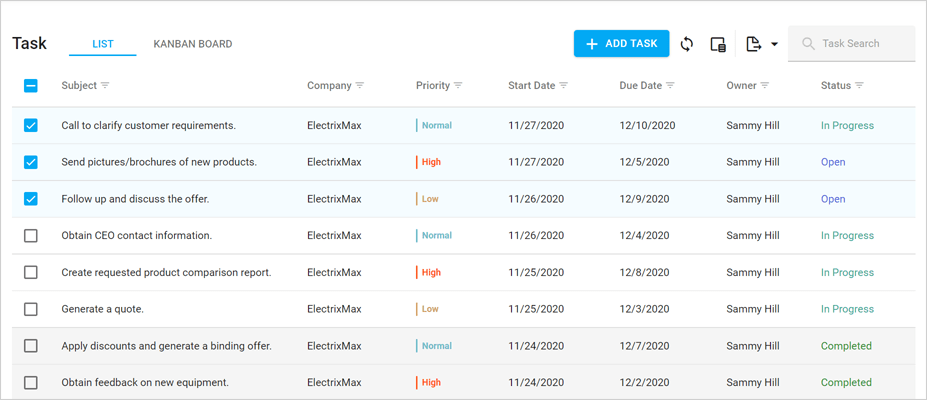

Project Management Template - Angular Components | DevExpress

Project Management - Angular Components | DevExpress

ASP.NET Controls v22.1

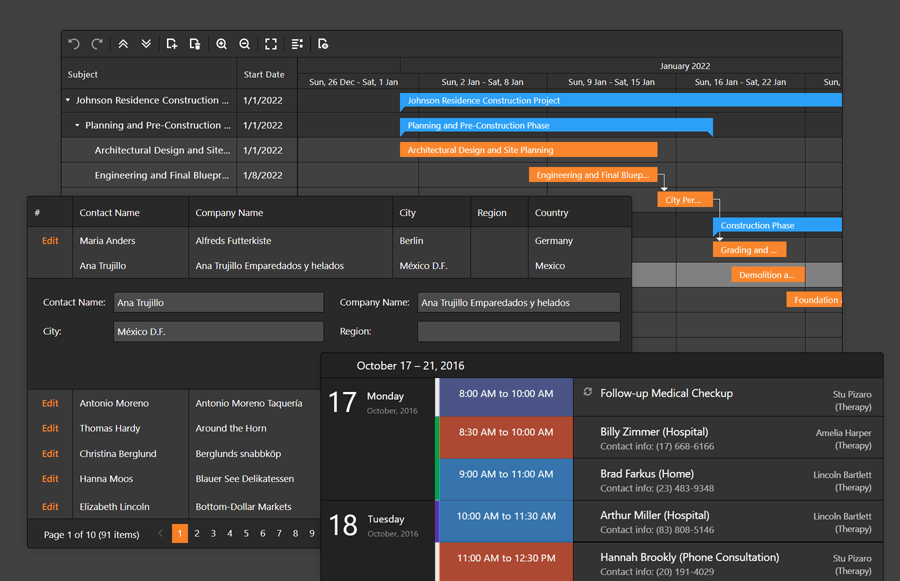

New Office 365 Dark Theme

Office 365 Dark Theme - ASP.NET Web Forms and MVC | DevExpress



GridView, TreeList, Vertical Grid

Multiple Cell Selection

Our ASP.NET GridView, ASP.NET TreeList, ASP.NET Vertical Grid controls now support multiple cell selection. To enable this option, set the SettingsEditing.Mode property to 'Batch' and turn on the BatchEditSettings.EnableMultipleCellSelection option.

End-users can select cells with the mouse or keyboard (Shift/Ctrl + arrow keys).

New client API includes:



Online Demo

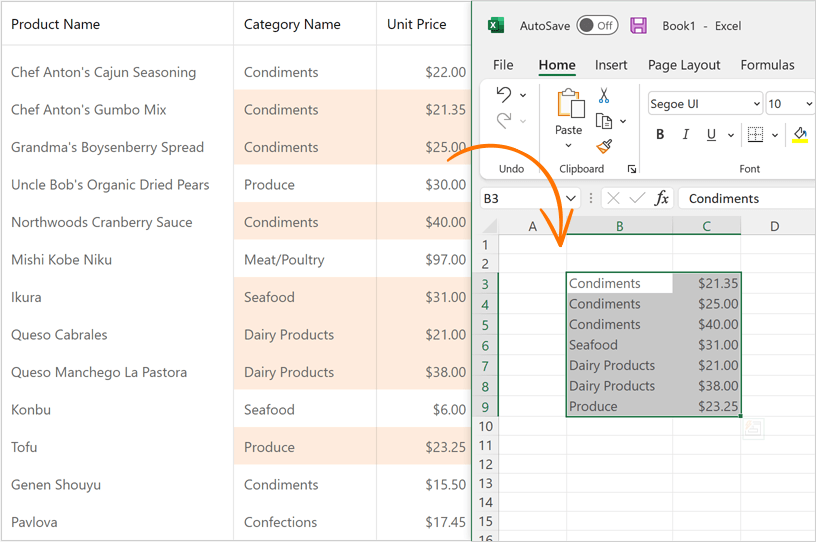

Data Editing in Batch Mode - Copy/Paste Multiple Cell Values

With multiple cell selection enabled, users can now copy a cell range and paste it into grid cells or external controls (e.g. GridView, Spreadsheet, TreeList). Users can also copy the range of cells and paste it in Excel.



Copy/Paste Multiple Cell Values - ASP.NET GridView for Web Forms | DevExpress



Online Demo



Range Filter for Numeric Values

We incorporated a range track bar in column filters for numeric values. To activate this option, set the SettingsHeaderFilter.Mode property to 'NumericRangePicker'.



Range Filter for Numeric Values - ASP.NET GridView | DevExpress



Online Demo



Gantt

Custom Fonts for PDF Export

We added a new 'font' option to our ExportToPdf method so you can specify a custom font for your exported PDF document.



Scale Customization

We added a new ScaleCellPrepared event that allows you to customize the look and feel of scale cells and cell separators. You can specify such settings as color, style, and text.



Performance Enhancements

We have optimized our ASP.NET Gantt control's data processing and rendering engine to avoid excessive database queries. The Gantt control now uses fewer database queries when updating tasks.



Pivot Grid

Unified Field Binding API in Server Mode and OLAP Mode

v22.1 updates Data Binding API support in both Server and OLAP Modes.

In OLAP mode, you can now set the DataBinding property to a DataSourceColumnBinding object (to bind a field to data). To specify an OLAP expression, set the 'DataBinding' property to an 'OlapExpressionBinding' object.

In Server Mode, use 'DataSourceColumnBinding' and 'ExpressionDataBinding' objects respectively.

This update also includes support for the following criteria operators:

  • IsTotal - Determines whether a total summary value is being calculated.
  • FirstValue - Returns the first row of records used to calculate an aggregate value.

Documentation



Miscellaneous Enhancements

New Keyboard Events

We added keyboard events to our Web Forms/MVC data container controls (GridView, CardView, VerticalGrid, and TreeList). You can handle the following events on the client side to respond to user keyboard actions:



Data Filtering Enhancements

v22.1 ships with the following enhancements to our standalone and embedded Filter Controls:

  • Numerous predefined comparison operators for DateTime fields (see FunctionType).
  • Ability to create custom comparison operators (see CustomFunctionName).


Demo - Web FormsDemo - MVC



ASP.NET Core Controls v22.1

Data Grid

Export to PDF

v22.1 marks the official release this feature. Our Export to PDF API includes the following options/capabilities:

  • WISIWYG Export to PDF
  • Fit-to-Page
  • Multi-Page Export
  • Text Wrapping
  • Progress Indication
  • Cell Content, Format, and Appearance Customization options
  • RTL Support


Export to PDF API - Data Grid | DevExpress



Online Demo

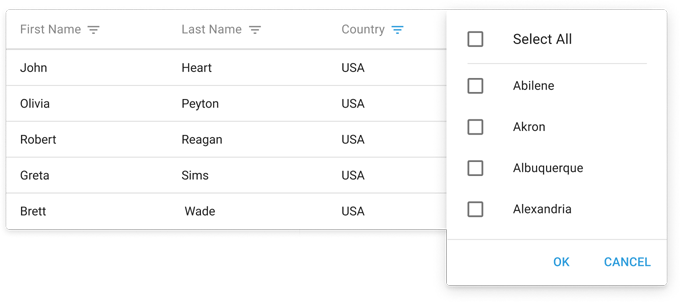

Grid Column Enhancements

Grid columns now display items based on the applied filter (not all items as in previous versions).

Grid Columns - ASP.NET Core Grid | DevExpress



Online Demo



Pager - Enhanced Compact Mode

The grid's pager now displays paging information using a compact display mode.



Pager - Compact Mode, ASP.NET Core Data Grid | DevExpress



Online Demo



Scheduler

All-Day Panel Modes

We added a new 'AllDayPanelMode' method that allows you to specify which appointments to display within the All-day Panel. Available options include:

  • hidden - the Scheduler renders all-day appointments in the timetable. The All-day Panel is hidden.
  • allDay - the All-day Panel displays only explicit all-day appointments. Implicit all-day appointments are shown in the timetable.
  • all - the All-day Panel displays explicit and implicit all-day appointments.


All-day Panel Modes - ASP.NET Core Scheduler | DevExpress



API Enhancements

You can now delete recurring appointment occurrences using. Use the deleteRecurrence method.



Charting

Change Data Label Formats

Use the label's DisplayFormat method to change the format of data labels within a chart.



Data Label Formats - ASP.NET Core Chart | DevExpress



Gantt

Custom Fonts for PDF Export

We added a new font option to the ExportToPdf method so you can specify a custom font for an exported PDF document.



Scale Customization

We added a new ScaleCellPrepared event to help customize the look and feel of scale cells. You can now specify color, style, and text settings.



Scale Customization - ASP.NET Core Gantt | DevExpress



HTML/Markdown Editor

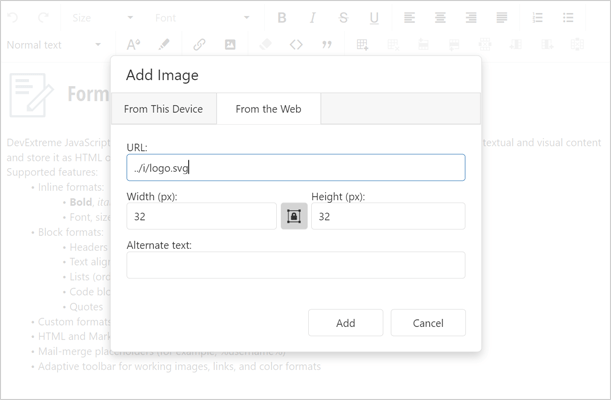

Image Upload

Our HTML Editor ships with image upload support. You can drag-and-drop images onto the editor surface or use the upload form (select files from a file system or specify a URL). You can also resize images within the editor.

Use the FileUploadMode method to specify whether to upload images on the server or to the client using the base64 format. The Tabs method specifies the visibility of corresponding tabs in the dialog. Use this property to display 'From this computer', 'From the web', or both tabs.

Documentation



Image Upload - ASP.NET Core HTML Editor | DevExpress



Online Demo



UI Components

Display Multiple Toasts in a Stack

With this update, toasts no longer overlap each other. We added two new methods: notify(message, stack) and notify(options, stack) to help display toasts one under another.

Use the hideToasts method to hide all toast messages.

Display Multiple Toasts in a Stack - JS UI Widgets | DevExpress



Online Demo



Resizable UI Enhancements

Our Resizable component includes two new methods:

  • KeepAspectRatio - Specifies whether to proportionally resize component content when a user drags its corner handle.
  • Area - Specifies a bounding container. A user can't resize the component outside the boundaries of the specified container.


Resizable Data Grid | DevExpress



Online Demo



Validation Summary Enhancements

The new refreshValidationGroup method allows you to rebind the Validation Summary component to its target Validation Group whenever the validation group is recreated.



Toggle Between Open Popups

We improved our Popup component. Users can now switch between open popups via a pointing device or keyboard.

Toggle Between Open Popups - DevExpress



Currency-Accounting Style - Format Negative Values

We added a new 'useCurrencyAccountingStyle' option (enabled by default). This option specifies whether to use system settings for negative values (currency-accounting format). Otherwise, negative values are displayed with a minus sign.



ASP.NET Bootstrap Controls v22.1

GridView and CardView

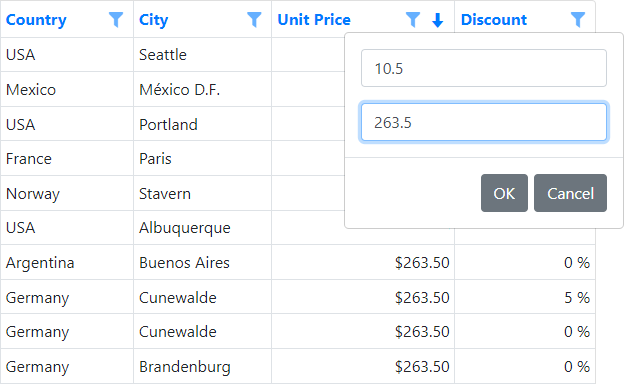

Range Filter for Numeric Values

We incorporated a range filter for numeric values in column filters. To activate this option, set the SettingsHeaderFilter.Mode property to 'NumericRangePicker'.



Range Filter for Numeric Values - ASP.NET Bootsrtap GridView | DevExpress



Online Demo



.NET Reporting v22.1

All Platforms

Customize the Parameters Panel in the Report Designer

You can now customize the layout of the Parameters Panel within the Report Parameters Editor (inside the Visual Studio IDE and our End-User Report Designer, for all supported development platforms). Yes, you no longer need to write any code. You can group parameters, change the location of editor labels, set up conditions to display/hide individual parameters, etc.

Documentation | Blog Post

Customize the Parameters Panel in the Report Designer - DevExpress Reporting

Customize the Parameters Panel in the Web Report Designer - DevExpress Reporting

To execute this demo, you must first
install the BETA - active Universal or DXperience subscription is required.


Cross-Tab Enhancements

Our Cross-Tab report control includes the following new options:

  • Html-inspired Text Formatting
  • Distinct Count, Median, and Mode Summaries
  • Show/Hide Rows and Columns Based on a Condition
  • Support for Optimized Calculation Engine

Documentation



Parameters - Server-Side Filtering for Cascading Parameters

Cascading report parameters now filter associated data source information on the server-side if the 'FilterString' property has been specified. This feature will reduce overall memory usage/allocation.

The following data source types support this functionality:

  • SQL Database
  • MongoDB Instance
  • Entity Framework

Documentation

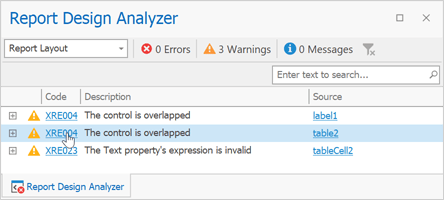

Report Design Analyzer Enhancements

  • Turn on the 'DesignAnalyzerOptions.EnableErrorCodeLinks' option to display error codes as links in the End-User Report Designer. Click a link to open our online documentation for details on error codes.

    DevExpress Reporting - Report Design Analyzer Enhancements

  • To ignore specific errors, add their error codes to the 'DesignAnalyzerOptions.SuppressedErrorCodes' collection.

  • We also added three new options ('ShowErrors', 'ShowWarnings', 'ShowMessages') that enable you to filter issues by a category/type in code. You can display only errors, warnings, messages, or any combination of them.

Documentation



Expression Editor - Custom Aggregate Functions

We enhanced the Expression Editor in our End-User Report Designer. It now displays custom aggregate functions registered in your application.

Documentation



Data Source Enhancements

Entity Framework Core 6 Support

EFDataSource now supports Entity Framework (EF) Core 6.0 context classes bound to MS SQL Server.

Documentation



SQL Data Source

  • Stored Procedures with Multiple Result Sets

    You can now bind our SqlDataSource component to a stored procedure that returns multiple data tables. You can also view these tables in the Report Designer Field List.

  • Google BigQuery ODBC Provider Support

    Our Google BigQuery data access engine now uses the official ODBC driver.

  • MySqlConnector Support

    The MySql Database Provider can now use the https://mysqlconnector.net/ - a MIT-licensed ADO.NET data provider for MySQL Server to operate with MySQL-compatible databases. The MySql Database Provider ships with our Data Access Library.

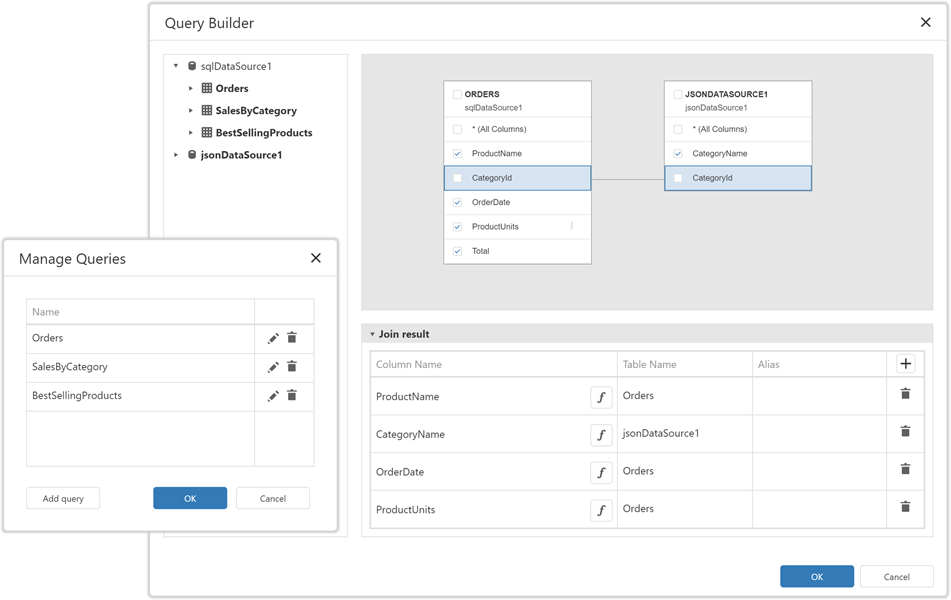

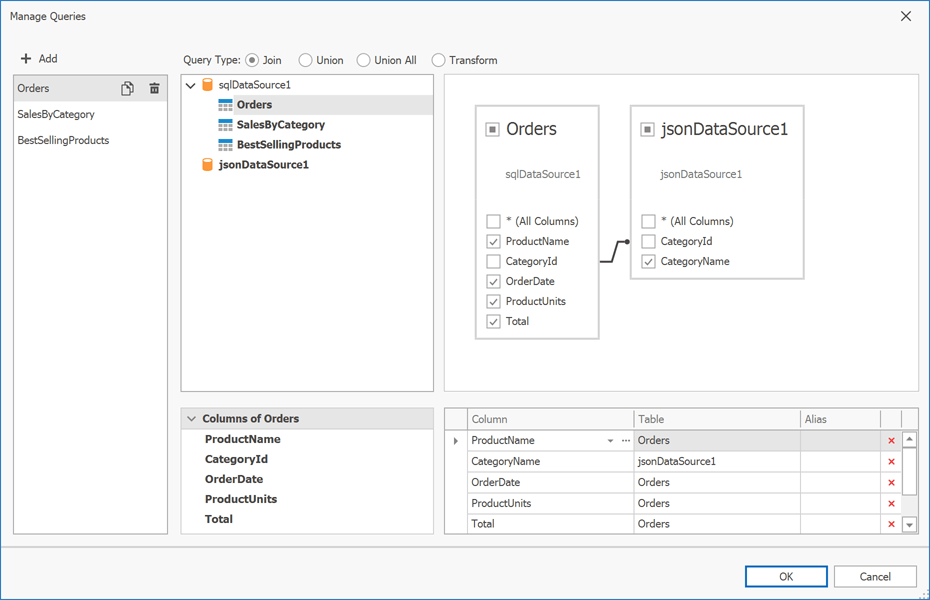

Federation Data Source - Enhanced Manage Queries Dialog

We integrated the Queries List into the Federation Data Source Manage Queries dialog. You can now manage the data source (create, copy/clone, edit, and delete queries) within a single wizard window.

Federation Data Source Wizard - Query Builder - .NET Reporting | DevExpress

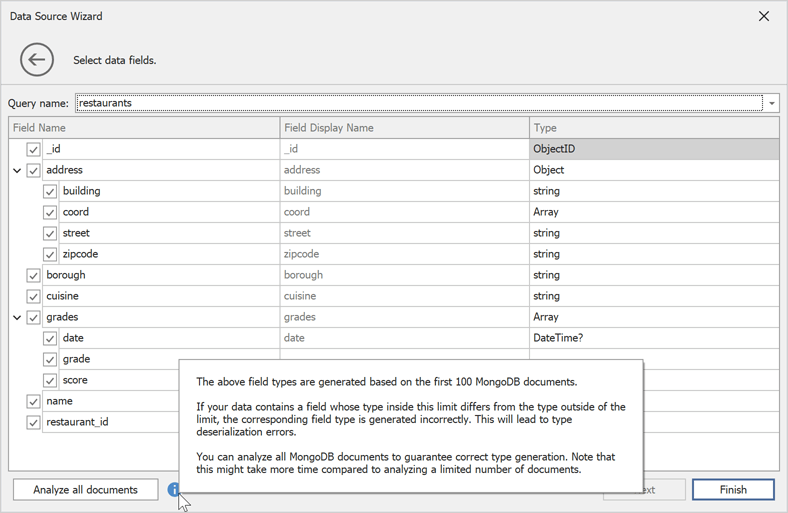

MongoDB and JSON DataSource Wizards

We extended our MongoDB data source configuration wizard with the following new options:

  • Select/Unselect Data Fields
  • Specify Field Display Names
  • Change Field Type

You can now safely edit the JSON Data Source schema without loosing selected fields and field display names.

Our MongoDB and JSON Data Source Wizards analyze the first 100 documents/records to generate a schema. If the data source contains more that 100 documents, the Wizard displays an 'Analyze all documents' button. Click the 'Analyze all documents' button to analyze all documents in the data source and create your schema.



MongoDB and JSON DataSource Wizards - .NET Reporting | DevExpreess



Web Reporting

Web Report Designer - Data Federation

Our Web Report Designer's Data Source Wizard allows you to combine multiple report data sources and define joins or relationships between queries and collections. End-users can now create joins, unions, and query transformations as requirements dictate.

Web Report Designer - DevExpress Reporting

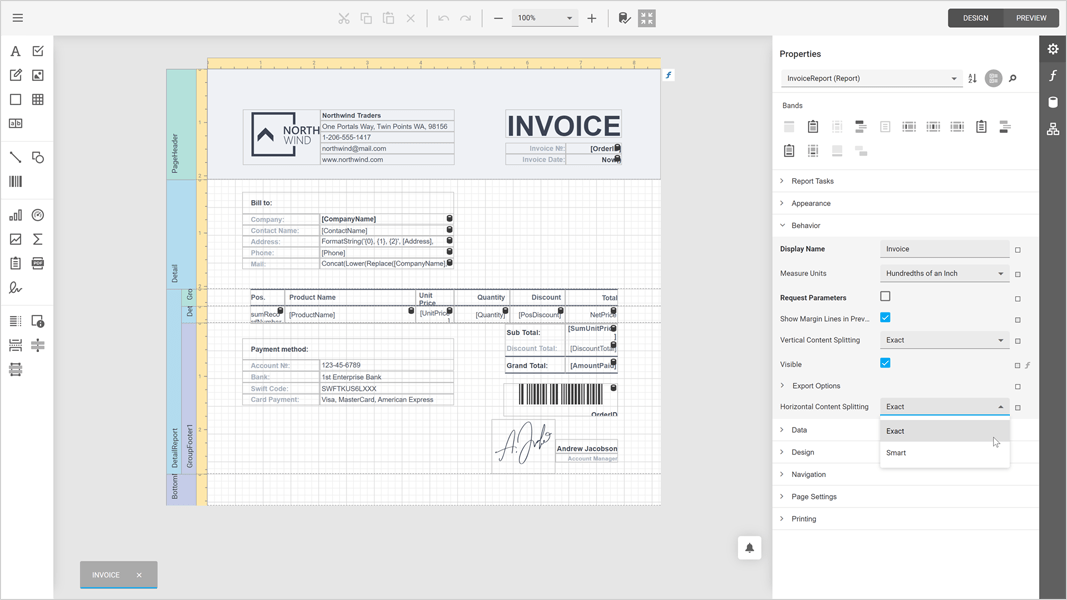

Material Theme Support

We optimized the layout and refined the structure of CSS styles in our Web Report Designer, Web Document Viewer, and Query Builder components. You can now use these components in Web apps that adhere to Material Design Guidelines.

Documentation

Material Theme Support - .NET Reporting | DevExpress



WinForms Reporting

Report Designer - Enhanced Search in the Report Explorer & Field Picker Dialogs

The Report Explorer panel (and all panels/popup windows that allow users to select data source fields) includes an improved search bar. When a user searches for a specific element(s), the tree automatically expands down to the element(s) that matches the search criteria.

Enhanced Search in the Report Explorer - WinForms Reporting | DevExpress



WinUI Reporting

We enhanced our WinUI Document Viewer. Its new features include:

  • Async Document Generation
  • Keyboard Navigation
  • Mouse-Wheel Zoom, Zoom Trackbar, Toolbar Commands (zoom modes)
  • Drill-Down & Interactive Sorting
  • Text Selection
  • Document Margins
  • Responsive Report Layout
  • Search and Document Map
  • Export Options Dialog
  • Configurable Parameters Panel Layout (Documentation)
  • Status Bar: Indication of Lengthly Operations (document generation, document export) / Ability to Cancel the Operation

Documentation



WinUI Report Viewer - .NET Reporting | DevExpress



Office File API v22.1

Spreadsheet Document API

Shrink to Fit

Our Spreadsheet Document API now applies the Shrink to Fit cell alignment option when it prints and exports spreadsheet documents (to PDF).



Business Intelligence Dashboard v22.1

WinForms and WPF Dashboard

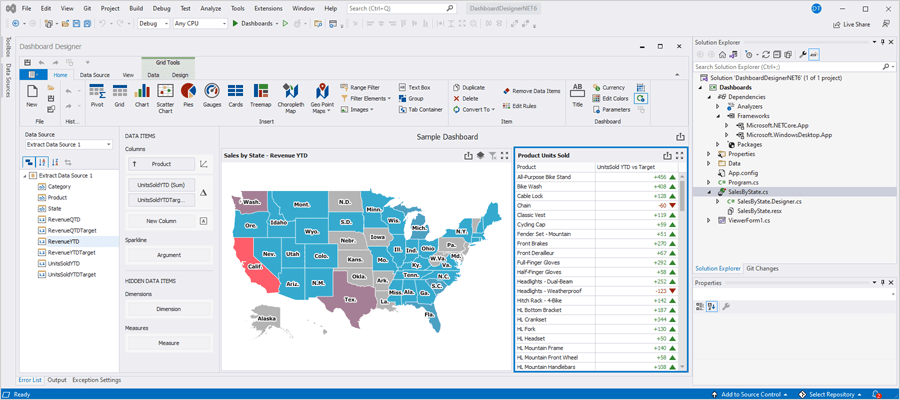

Visual Studio Dashboard Designer for .NET 5/.NET 6

You can now use our Dashboard Designer to create and edit Dashboards in .NET 5/.NET 6 apps. Double-click a class file with your dashboard within the Visual Studio IDE to open the Dashboard Designer.

Documentation



Visual Studio Dashboard Designer for .NET 5/.NET 6 | DevExpress



Common Enhancements

Memory and Performance Profiling Tool

The DevExpress BI Dashboard Diagnostic Tool is a performance management system that helps analyze code execution speed (to help improve overall dashboard performance). With this tool, you can estimate overall speed and determine how many times specific code was called during a single session.

Get it from GitHub

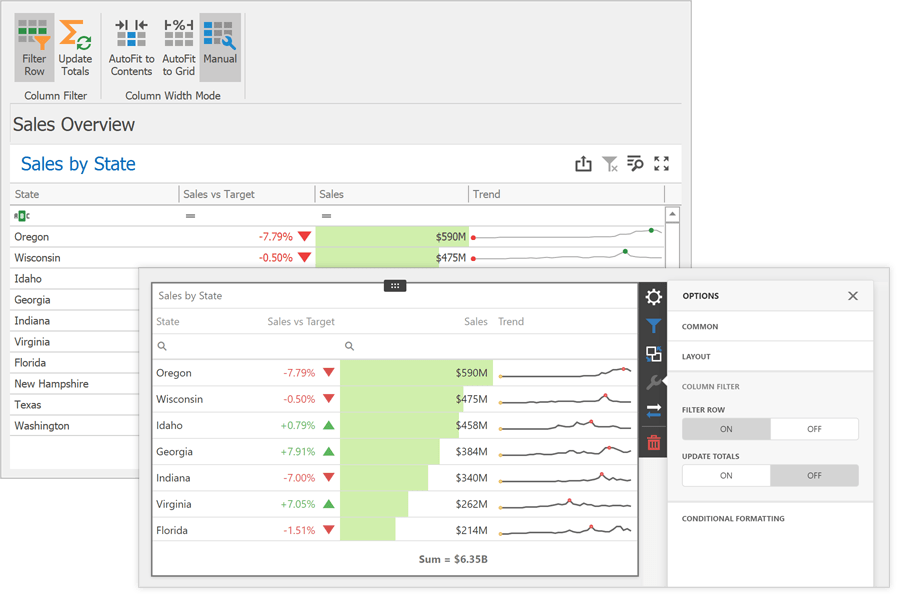

Grid Dashboard Item - Column Filter

Use the 'Filter Row' option to activate grid column filters. Once activated, end-users can search and filter grid rows with ease.

We've also added an 'Update Totals' option. This option determines whether the grid automatically recalculates totals when users filter grid data.

Documentation

Grid Dashboard Item - Column Filter - DevExpress BI Dashboard



Web Dashboard

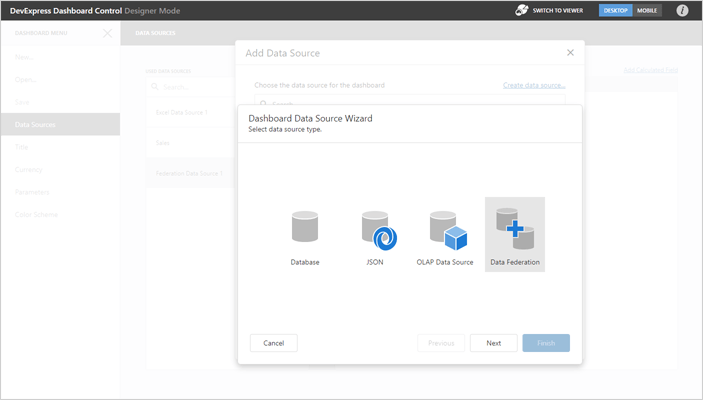

Dashboard Data Source Wizard - Data Federation

We integrated a new window into our Data Source Wizard so you can create a Federated Data Source within our Web Dashboard UI. You can combine all supported data sources (except OLAP) or you can allow users to create their own (from existing data sources) as needed.

Documentation



Dashboard Data Source Wizard - DevExpress

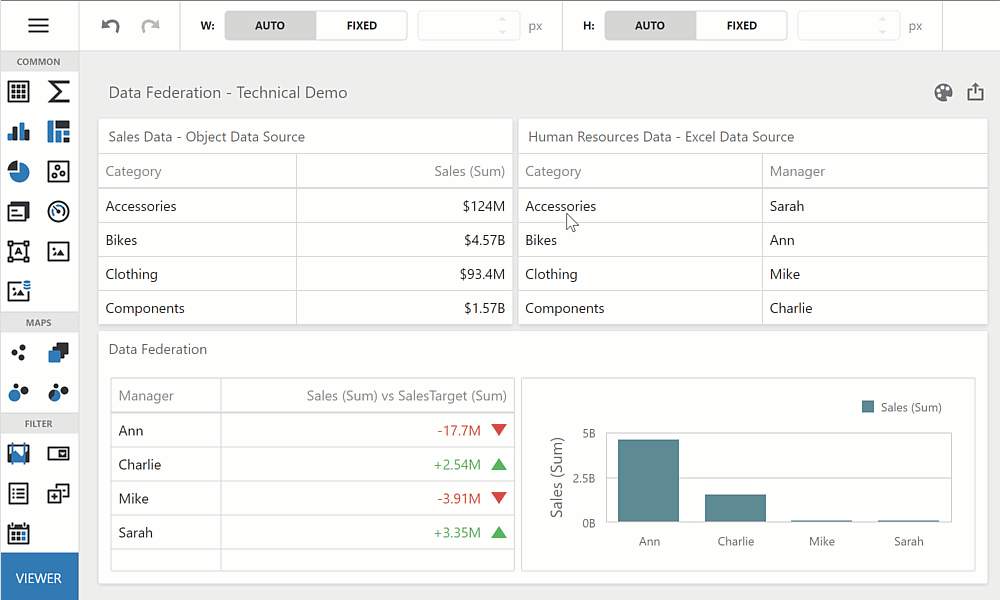

Dashboard Items - Data Binding Enhancements

You can now safely rebind dashboard items without loosing individual data bindings. Should a binding error occur, the designer highlights broken bindings in red.



Rebind Dashboard Items - BI Dashboard | DevExpress



Opacity / Transparency

Whether it is a color scheme or a single element in a dashboard item, you can now specify its opacity level. The Color Picker tool allows you to specify color values with an alpha channel.

Documentation



XAF - Cross-Platform .NET App UI v22.1

Blazor & WinForms UI

.NET 6 - By Default

With v22.1, XAF's Blazor, Web API Service, and WinForms (.NET Core) assemblies target .NET 6 by default.

.NET 6 is a long-term support (LTS) release. With it, we'll deliver the highest possible performance and unrivaled user experience for Blazor, XAF Model Editor, and WinForms design-time.



New Blazor Grid List Editor

This update marks the official release of our Blazor Grid List Editor (DxGridListEditor). This new UI element is built atop the new DevExpress Blazor Grid component. Its new features include:

  • Client and Server Mode Support for EF Core and XPO ORM Library
  • Custom Calculated Field support for XPO ORM
  • Column Resizing support
  • Column Customization / Column Chooser support

Documentation



Blazor Grid List Editor - XAF | DevExpress



Main Menu Toolbar Enhancements

We returned our WinForms and ASP.NET WebForms UI implementation. Menu commands are now disabled based on record selection within the ListView.

Breaking Change:
T1087758 - Blazor: Main menu toolbar disables commands based on record selection within the ListView



Main Menu Toolbar Enhancements - XAF | DevExpress



Entity Framework Core 5 for Data Access

EF Core 5 Support for WinForms was first introduced in May 2021 as a Community Technology Preview (CTP). This update marks its official release. Enhancements include multiple stability improvements and support for the Server and DataView access modes in ListView. You can also use EF Core 5 in XAF's Blazor apps, .NET App Security API, and Web API Service.

Documentation



Unified Application Configuration for WinForms & Blazor (.NET 6)

You can now use the Windows Forms and ASP.NET Core Blazor fluent API-based application builders to deliver straightforward and consistent configurations for security and application modules. You can find application builders in 'MySolution.Win\ApplicationBuilder.cs' and 'MySolution.Blazor.Server\Startup.cs' files.

  • C#
                        // ...
                        services.AddXaf(Configuration, builder => {
                            builder.UseApplication<MainDemoBlazorApplication>();
                            builder.Modules
                                .Add<MainDemoModule>()
                                .Add<MainDemoBlazorApplicationModule>()
                                .AddAuditTrail(options =>
                                    options.AuditDataItemPersistentType = typeof(DevExpress.Persistent.BaseImpl.AuditDataItemPersistent))
                                .AddFileAttachments()
                                .AddObjectCloning()
                                .AddOffice()
                                .AddReports()
                                .AddValidation();
                                // ...

We also removed the 'PlatformApplication.designer.xx' and 'Module.designer.xx' files from the Solution Wizard template in .NET 6 apps. These changes will not break your apps for the .NET Framework. You can continue to use our Application and Module Designers.

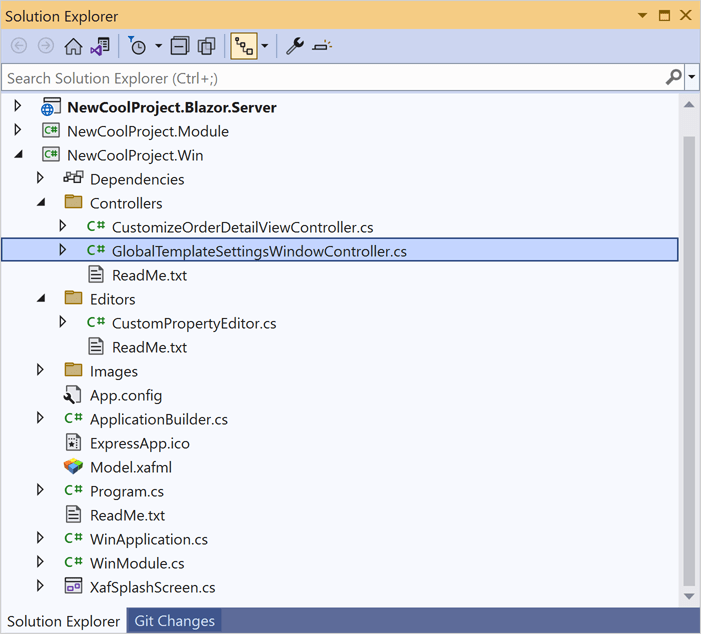

XAF Solution Structure - Simplified for .NET 6

With this update, XAF solutions will not include SolutionName.Module.XXX projects. You can add controllers, business classes, list and property editors, view items, and other XAF-specific entities to your SolutionName.XXX application projects. This enhancement makes it easier for new XAF developers to get started with the product and avoid common mistakes.



XAF Solution Structure - Simplified for .NET 6 | DevExpress

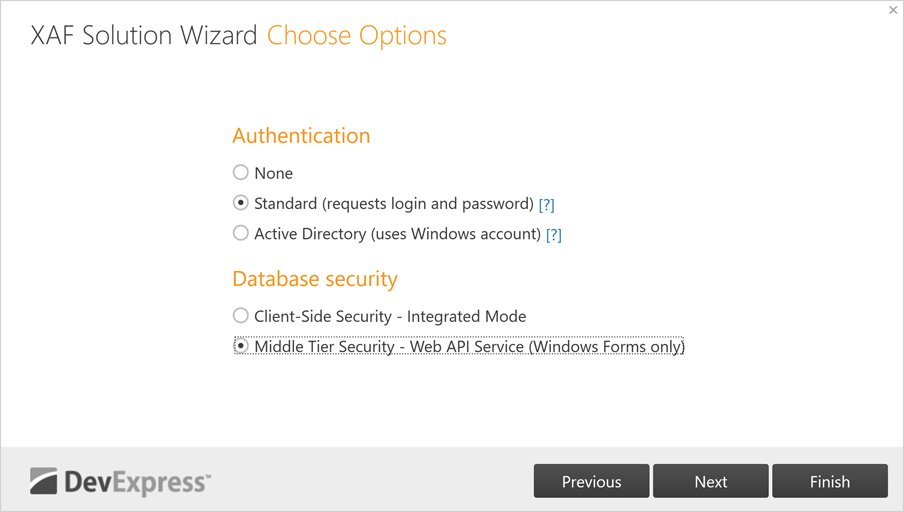

XPO Middle Tier Application Server for .NET 6

This update marks the official release of our Middle Tier application server with XPO-based .NET 6 WinForms apps.

Documentation



XPO Middle Tier Application Server for .NET 6 | DevExpress



Visual Studio Report Designer for .NET 6

You can now use XAF-specific report data sources in our new Visual Studio Report Designer for .NET 6.



Web API Service

CRUD & Authorization for Entity Framework Core 5 & XPO ORM

This update marks the official release of our Web API Service. XAF's Solution Wizard now generates a Web API Service with integrated authorization & CRUD operations powered by EF Core 5 and XPO ORM Library.

The basic functions of our Web API Service are available for free (as part of our .NET Role-based Access Control & Permission Management API. To download your free copy, please visit: https://www.devexpress.com/security-api-free



WEB API Service - XAF | DevExpress



Localization Support

Our Web API Service now includes endpoints to obtain localized captions for classes and members. This option of our Web API Service ships as part of the Universal Subscription.



Localization Support - Web API Service, XAF | DevExpress



Core Enhancements

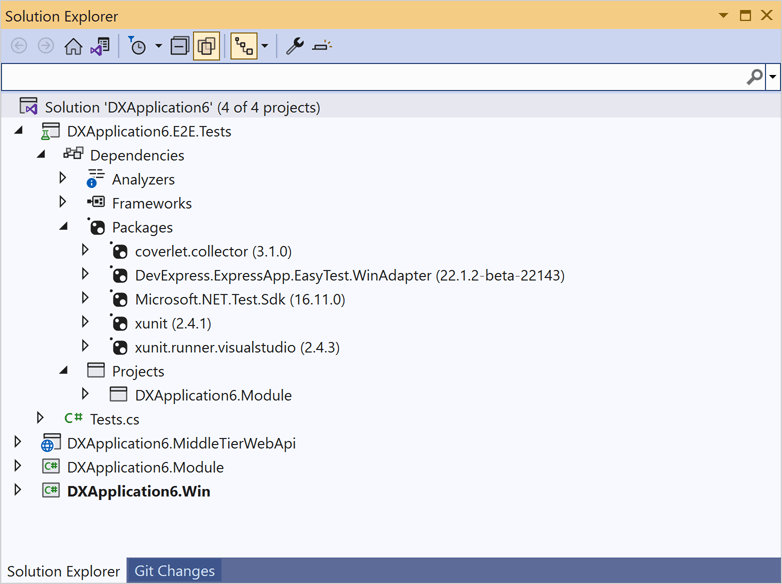

Unit & Functional Testing in Solution Wizard

You can now write end-to-end (e2e/functional) tests in C#/VB.NET.

  • C#
                        [Theory]
                        [InlineData(BlazorAppName)]
                        [InlineData(WinAppName)]
                        public void CreateStudent(string applicationName) {
                            FixtureContext.DropDB(AppDBName);
                            var appContext = FixtureContext.CreateApplicationContext(applicationName);
                            appContext.RunApplication();
                            appContext.GetForm().FillForm(("User Name", "Admin"));
                            appContext.GetAction("Log In").Execute();

                            appContext.Navigate("Student");
                            Assert.Equal(0, appContext.GetGrid().GetRowCount());

                            appContext.GetAction("New").Execute();
                            appContext.GetForm().FillForm(("First Name", "John"), ("Last Name", "Smith"));
                            appContext.GetAction("Save").Execute();
                            Assert.Equal("John Smith", appContext.GetForm().GetPropertyValue("Full Name"));

                            appContext.Navigate("Student");
                            Assert.Equal(1, appContext.GetGrid().GetRowCount());
                            Assert.Equal(new string[] { "John", "Smith" }, appContext.GetGrid().GetRow(0, "First Name", "Last Name"));
                        }

We also added a new option to our Solution Wizard that adds a pre-configured test project to your solution.

Documentation



Unit and Functional Testing in Solution Wizard - XAF | DevExpress



New Error Diagnostics

This update marks the official release of XAF diagnostics. You can now analyze your solution with pre-built error diagnostics and view a detailed report in the Error List window. v22.1 includes the following new diagnostics to help you correctly define your business model and controllers:

  • XAF0009: Properties decorated with the 'RuleRequiredFieldAttribute' should be of nullable or reference type.
  • XAF0010: Set the 'DelayedAttribute.UpdateModifiedOnly' property to True.
  • XAF0011: Implement the delayed property correctly.
  • XAF0012: Avoid calling the 'XafApplication.CreateObjectSpace()' method overload without the 'Type' parameter.
  • XAF0013: Avoid reading the 'XafApplication.ConnectionString' property.
  • XAF0014: The property with the 'Association' attribute must have a correct unique pair.
  • XAF0015: Association must not have the 'Aggregated' attribute if it is paired to the 'many' end of the association.
  • XAF0016: Descendants of 'NonPersistentBaseObject' and 'NonPersistentLiteObject' must be decorated with the 'DomainComponent' attribute.

Documentation



SAP HANA Database Provider for XPO

Our XPO connection provider now supports SAP HANA.



MySqlConnector Database Provider for XPO

Our XPO connection provider now supports https://mysqlconnector.net/, a MIT-licensed ADO.NET data provider for MySQL Server, MariaDB, Percona Server, Amazon Aurora, Azure Database for MySQL, Google Cloud SQL for MySQL, and other MySQL-compatible databases.



.NET MAUI & Xamarin Controls v22.1

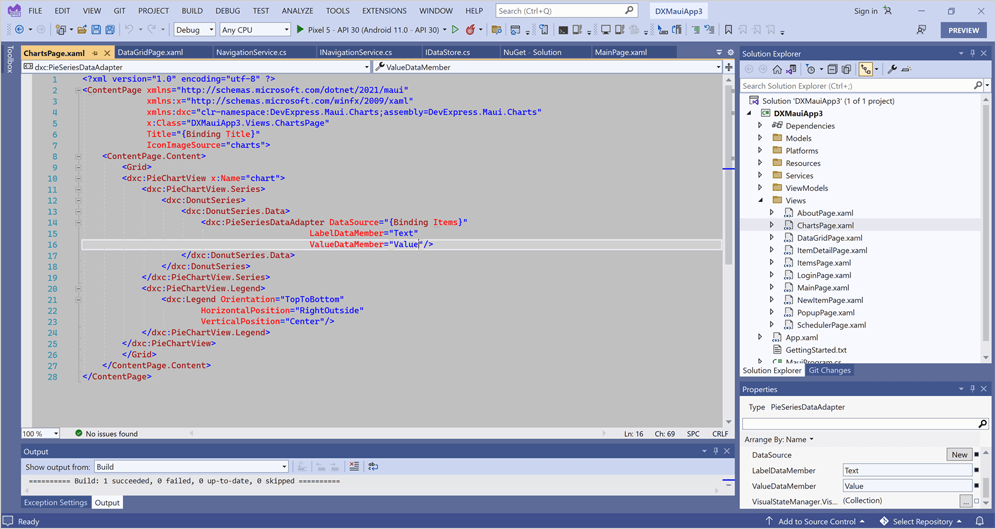

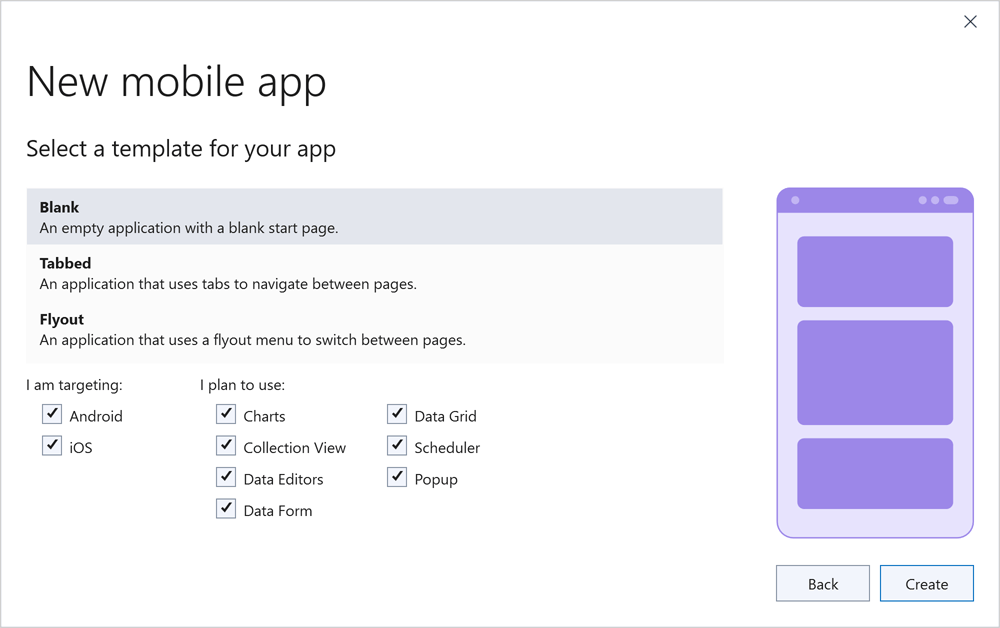

.NET MAUI Project Templates

Use our new .NET MAUI Project Templates for Visual Studio 2022 to quickly generate cross-platform .NET MAUI apps with our Scheduler, Popup, and Chart controls. The app may also contain the Log In, About, and other auxiliary pages.



Project Templates - .NET MAUI | DevExpress



Project templates add references to all DevExpress .NET MAUI NuGet packages and register all required handlers (the main page will declare XAML namespaces for all DevExpress controls).



Project Templates - .NET MAUI | DevExpress

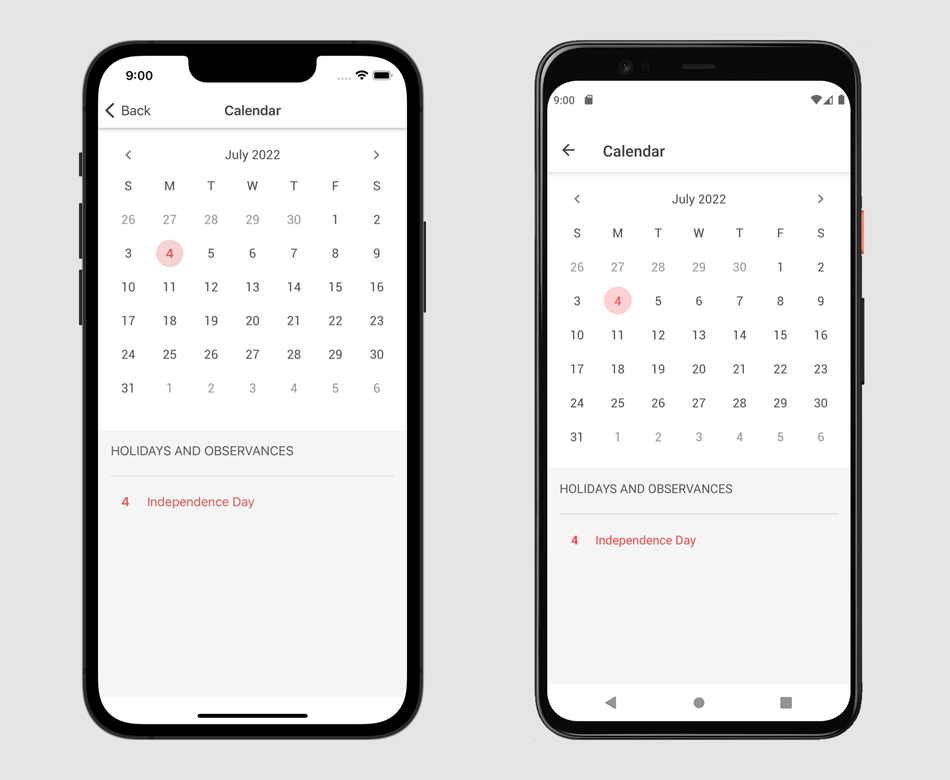

New Calendar for .NET MAUI & Xamarin Forms

Our new Calendar is a standalone and fully customizable control. You can customize the appearance of days, months, years, and the header. You can highlight holidays and observances, update fonts and colors, specify a custom data template to render a specific UI element as needed.

Documentation



Calendar - .NET MAUI & Xamarin Forms | DevExpress

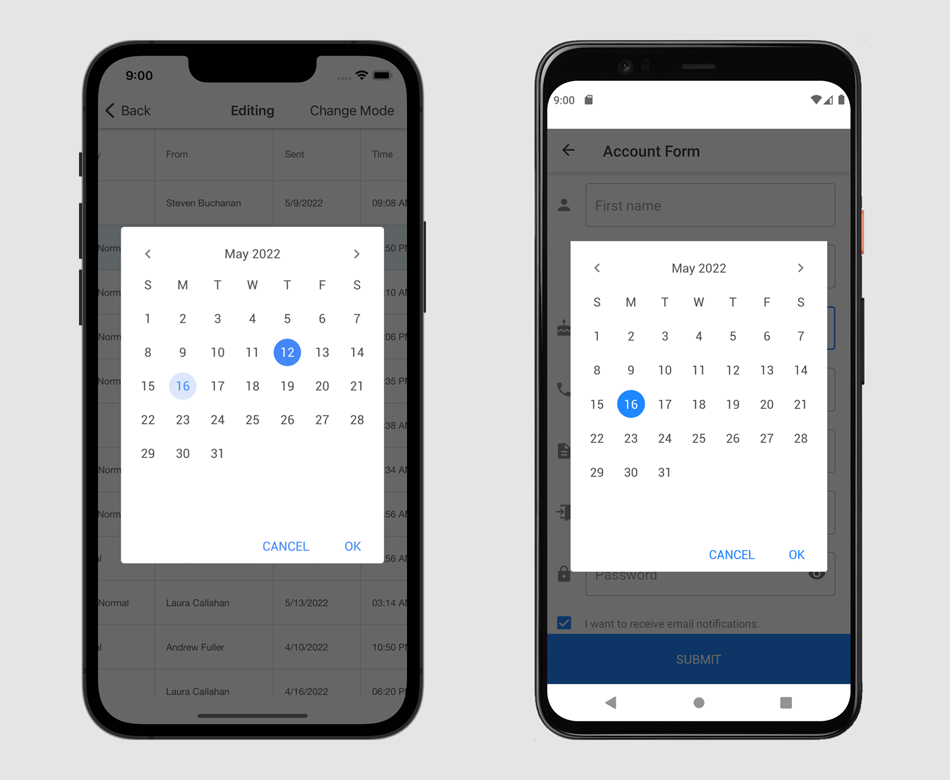

Date Editor for .NET MAUI & Xamarin Forms

The Date Editor now integrates our new Calendar. We also integrated the new date picker into DataGridView and DataFormView so that your apps on iOS and Android have a consistent look and feel.

Documentation



Date Picker - .NET MAUI & Xamarin Forms | DevExpress

CodeRush for Visual Studio v22.1

Performance Enhancements

Improved Startup Performance

We have improved startup performance by lazy-loading resources and settings, asynchronous initialization of internal services, reworking the way CodeRush interacts with Visual Studio menus and toolbars, and optimizing memory use.



Optimized Debug Visualizer

The Debug Visualizer steps over code faster, (due to optimized communication with Visual Studio’s debugging services). We also decreased the time required to render Debugger Visualizer visual elements.



Optimized Tool Windows

The Code Issues, Test Runner and Feature Advisor windows now load faster when run the first time.



Code Analysis

XAML Diagnostics for DevExpress WPF Components

CodeRush Code Analysis Engine can now check your XAML code for usage errors. This release introduces the following diagnostics for DevExpress Controls:

  • Legacy drag-and-drop - Drag-and-Drop Managers are a legacy way to enable drag-and-drop. Consider setting the 'DataViewBase.AllowDragDrop' property to 'true' instead.

    Documentation

  • ColumnBase.EditTemplate is used - The 'EditTemplate' property is outdated. Consider using CellEditTemplate instead.

  • FieldName matches the Binding path - When the Binding property is specified, 'FieldName' should not contain an existing property name.

    Documentation

  • Outdated windows The DXWindow, DXRibbonWindow, and DXTabbedWindow classes are outdated. Use ThemedWindow instead.

  • Cell templates missing PART_Editor - Consider setting the editor’s Name to 'PART_Editor' to automatically bind and configure the editor.

    Documentation

  • EditValueChanging/EditValueChanged is handled in CellTemplate - Due to the grid's virtualization mechanism, this event handler will be invoked whenever a user scrolls data. Consider handling 'CellValueChanging/CellValueChanged' (for the grid's View) instead.

    Documentation

  • An invalid EventToCommand.EventName - The EventToCommand's associated object is missing the event specified in EventName.

    Documentation

  • In-place editing is unavailable when NavigationStyle is set to Row or None - Setting the 'ColumnBase.AllowEditing' property to 'true' will have no effect if the 'DataViewBase.NavigationStyle' property is set to 'Row' or 'None'.

    Documentation

  • AutoWidth and relative column size are used together - Setting the relative (star) column size will have no effect if the 'TableView.AutoWidth/TreeListView.AutoWidth' property is set to 'true'.

    Documentation



XAML Diagnostics for DevExpress WPF Components - CodeRush | DevExpress



C# 10 Support

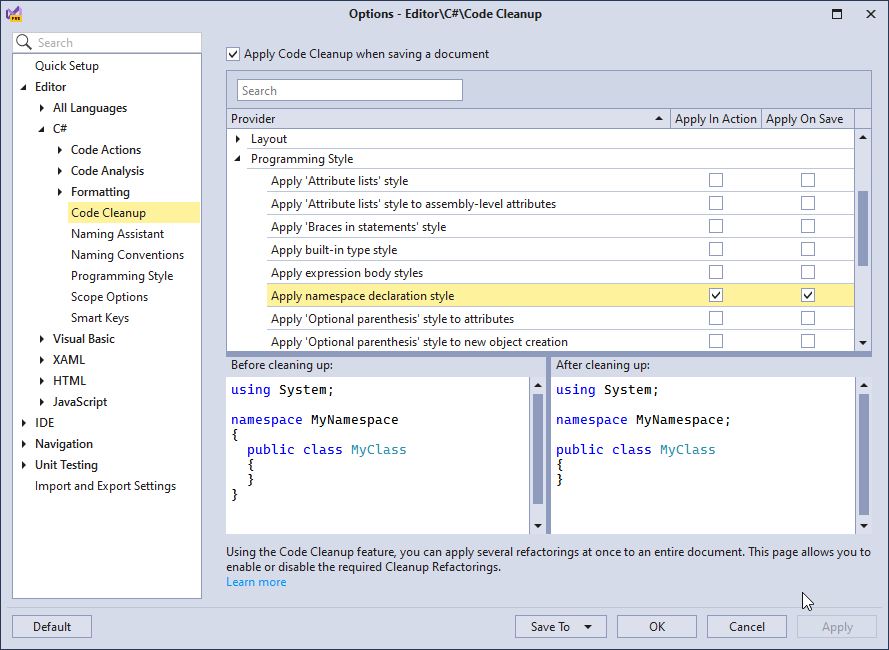

File-scoped Namespace Declaration Support for C# 10

CodeRush refactorings, Code Cleanup and Code Formatting engines now support the new C# 10 namespace declaration style as well as C# 10’s new global using directives feature.



C# 10 Support - CodeRush | DevExpress



Records and Record Structs Support

CodeRush now supports records (for C# 9) and record structs (for C# 10) in Code Cleanup, Smart Constructor and Code Diagnostics.



Refactorings

Create Descendant

You can now use the Create Descendant code provider to quickly create descendant classes (and records) with necessary constructors and selected member overrides.



Create Descendant Refactoring - CodeRush | DevExpress



Sync Namespace with Folder Structure

You can now apply the Sync Namespace with Folder Structure action in partial classes and in a copied folder that contains at least one .cs or .vb file. The namespace in the copied files will be renamed according to each file's new location.



Sync Namespace with Folder Structure Refactoring - CodeRush | DevExpress

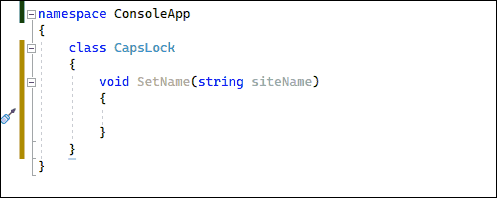

Caps as a Shortcut Modifier

You can now use the Caps Lock key as a shortcut modifier (just like Ctrl, Shift, or Alt) to create shortcut bindings for your favorite CodeRush commands and to quickly access a wide range of CodeRush functionality (refactorings, navigation, declarations, and more).

Read the blog post



Caps as a Shortcut Modifier - CodeRush | DevExpress



Smart Navigation (SmartNav)

The new SmartNav feature allows you to quickly navigate between adjacent members, statements, and arguments in C#, Visual Basic, and TypeScript/JavaScript, and also between controls and properties in XAML and XML. To use SmartNav, enable the “Caps Lock as a Modifier” feature and use Caps + the Arrow keys.



Smart Navigation (SmartNav) - CodeRush | DevExpress



The Learning CodeRush Solution

This release introduces the 'CodeRush Solution' containing interactive lessons to help you learn Caps Lock shortcuts and help you practice new CodeRush features.

To open this solution, select the CodeRush | Support | Open Learning CodeRush Solution... menu item or click the big Open Learning CodeRush Solution button on the last page of the Setup Wizard.



The Learning CodeRush Solution - CodeRush | DevExpress



Miscellaneous Enhancements

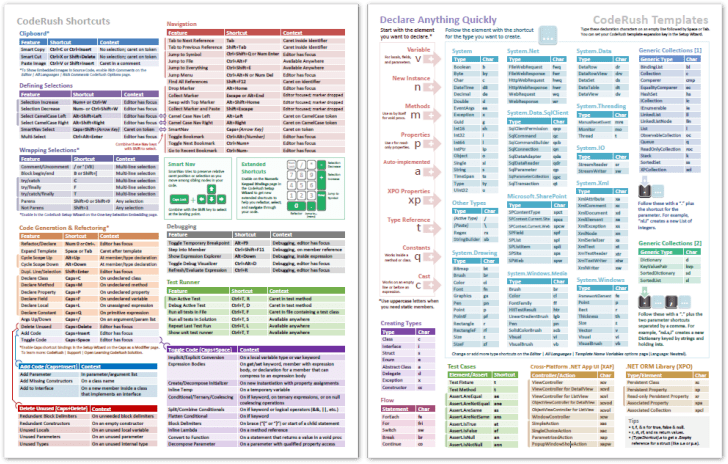

New Shortcut Cheat Sheet

Following the introduction of Caps as a Modifier and SmartNav, we have updated our CodeRush Shortcut Cheat Sheet.



Shortcut Cheat Sheet - CodeRush | DevExpress



You can get version 4 of the CodeRush Shortcut Cheat Sheet here.

VCL Controls v22.1



Download Your Copy Today

Once you're ready to upgrade, simply login to the DevExpress Client Center and download the appropriate installer to proceed.



Download and InstallFree Trial

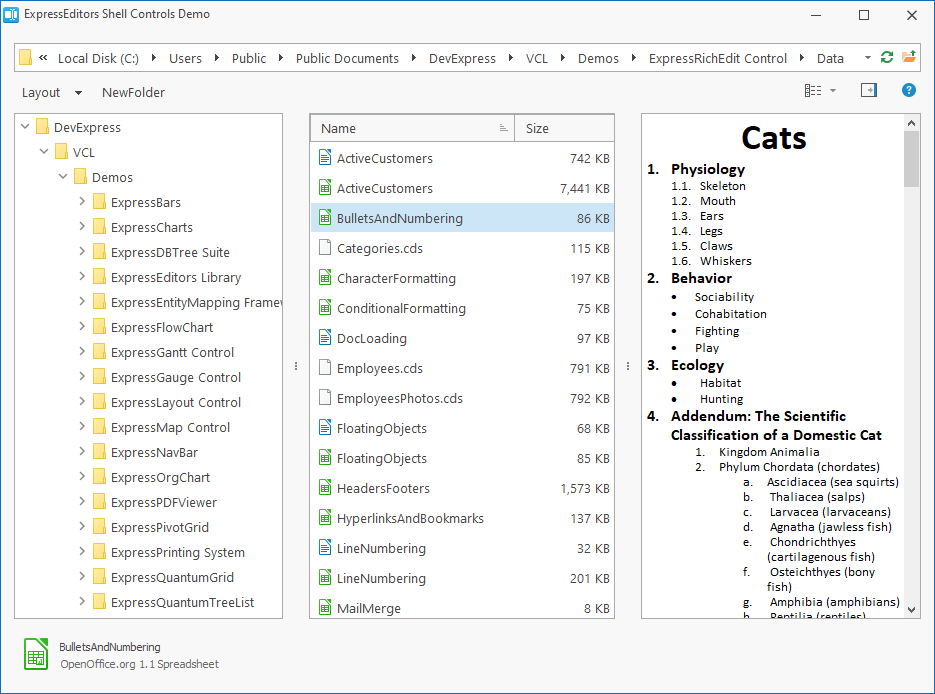

New Shell Controls - List & Tree Views

Our new Shell List View and Shell Tree View controls complete DevExpress line of high-performance utility interface products – controls designed to replace the corresponding standard VCL components. These new controls fully support look & feel settings and skins, which enables you to maintain a consistent appearance across the entire application, including shell dialogs.



VCL Shell Dialogs | DevExpress



Data Grid

Data Export Enhancements

New global APIs allow you to export grid content to a stream in XLS, XLSX, CSV, HTML, Text, XML formats. New methods include:

Documentation: VCL Data Grid: Data Export



Runtime Style Customization

We implemented three new events in the TcxCustomGridTableViewStyles class. Handle the following events to customize styles of the hot-tracked, inactive, and selected rows at runtime:



Data Grid, TreeList, and Vertical Grid

Support for Icons in Filter Dropdowns

Our VCL Data Grid, VCL TreeList, and VCL Vertical Grid controls now display icons for values displayed within regular and Excel-inspired filter drop-downs (for columns with image combobox in-place editors).



Support for Icons in Filter Dropdowns - VCL Data Grid | DevExpress



We also added a new OnGetFilterImages event that allows you to display custom images within filter items, or hide them.



Localization Enhancements

You can now localize names for the following aggregate functions: MIN, MAX, SUM, AVG, and COUNT, which can be displayed within group rows and footer cells.

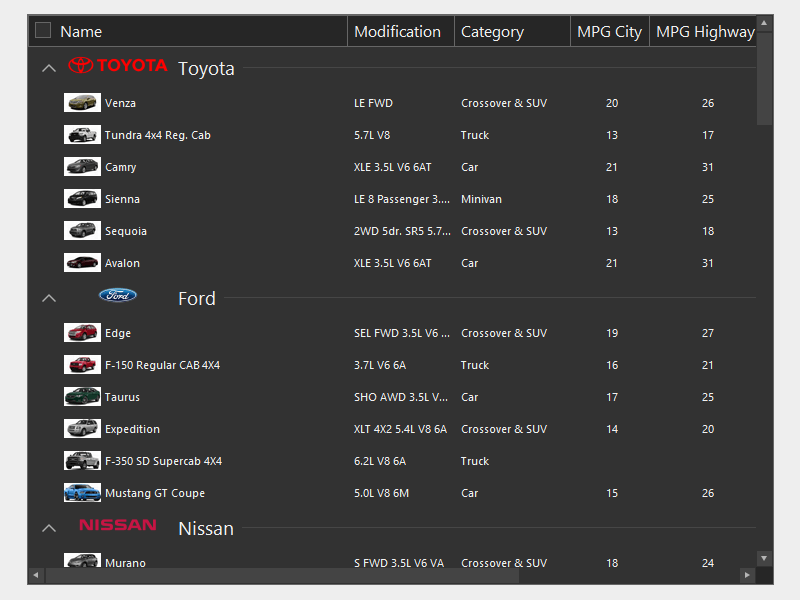

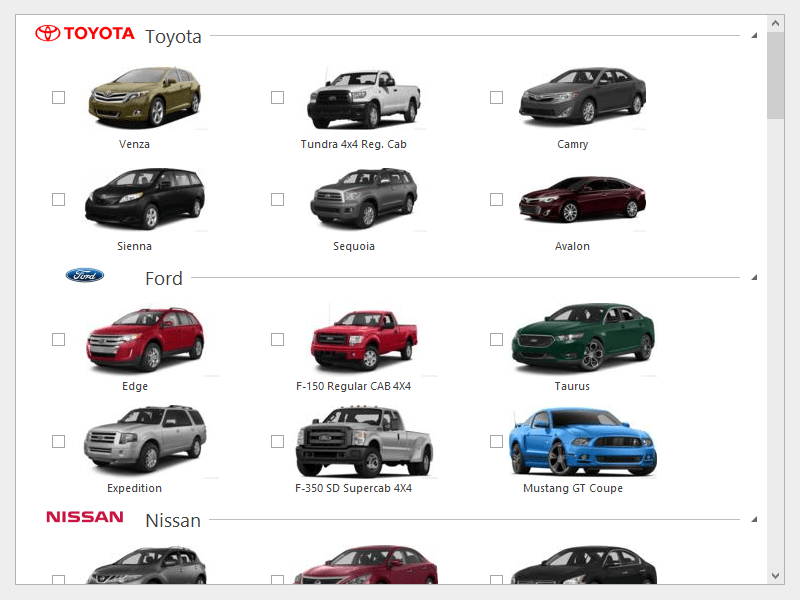

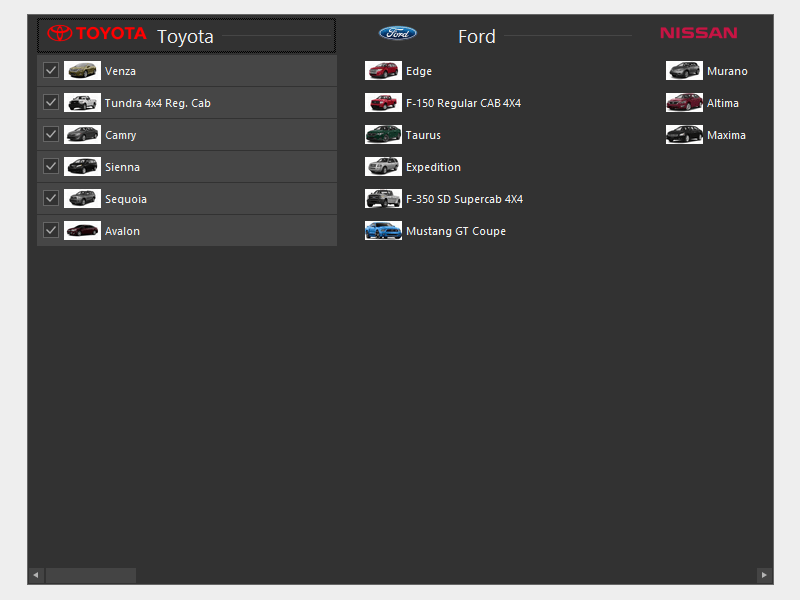

ListView Control

The ListView control was first introduced in June 2021 as a community technology preview (CTP). This update marks its official release. The DevExpress VCL ListView control is a skinnable high-performance counterpart for the standard VCL TListView control. For instance, it creates items 250-420 times faster than its standard VCL counterpart. The ListView control integrates the following options:

  • Per-pixel scrolling
  • Hybrid, touch-friendly, and classic scrollbars
  • Full DPI awareness
  • All DevExpress skins

Documentation

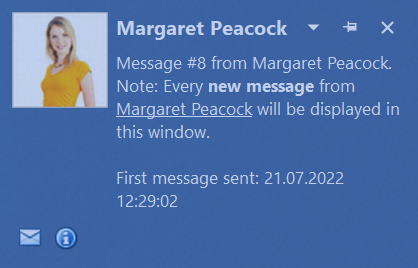

Support for BBCode-inspired Formatting Tags

In v22.1, we supported BBCode-inspired formatting tags in our Alert Window Manager and Hint Style Controller components. BBCode tags allow you to use limited text formatting within controls that do not support RTF strings and other text formatting options.



Support for BBCode-inspired Formatting Tags - VCL Subscription | DevExpress

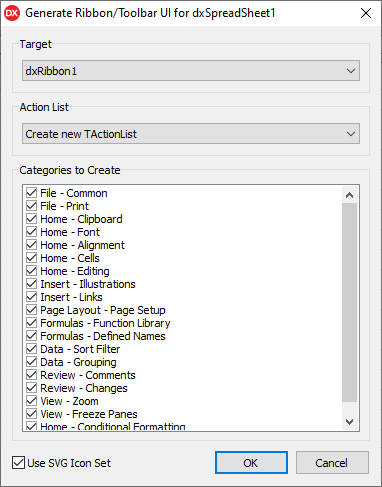

Vector Icons for Auto Generated Ribbon & Toolbar UIs

You can now incorporate vector icons into your auto generated Ribbons and Toolbars (for use within our Spreadsheet, Rich Edit, Scheduler, and PDF Viewer controls).



Vector Icons for Auto Generated Ribbon - VCL Spreadsheet Control | DevExpress



We ship vector icons as a part of our Icon Library. With this update, we introduce a new Use SVG Icon Set option in the Generate Ribbon/Toolbar UI design-time dialog (available for all supported DevExpress VCL products). This option replaces the predefined bitmap icon set with a corresponding set of SVG icons.



Use SVG Icon Set Option - VCL Spreadsheet Control | DevExpress



Input Dialogs - Password Masking

The Input Dialog now supports password masking that hides the password characters entered by the user. To specify a masking char, prepend an ASCII character whose number is less than #32 to the caption of the target text box.

  • Delphi
  • C++
                        APrompts[3] := #31'Password:';
                        APrompts[4] := #31'Repeat Password:';
                        APrompts[3] = "\x31" "Password:";
                        APrompts[4] = "\x31" "Repeat Password:";

Documentation



VCL Input Dialogs - Password Masking | DevExpress

Ready to Evaluate the Latest Version?



Download Free 30-Day Trial
